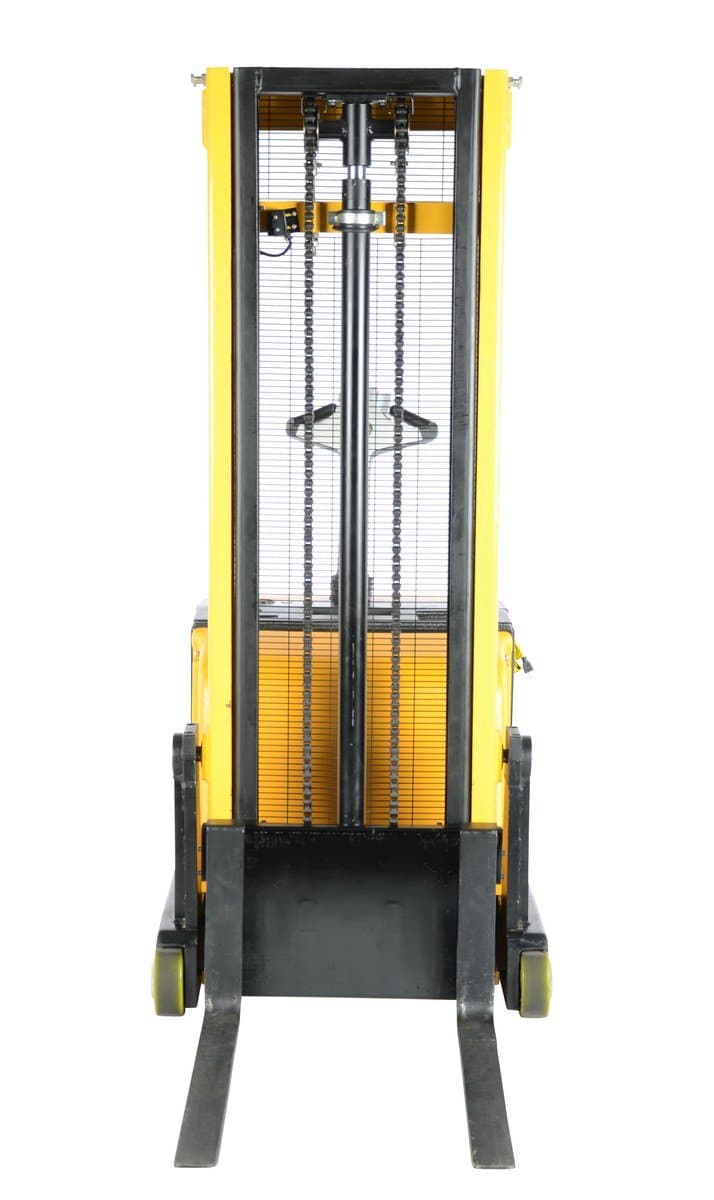

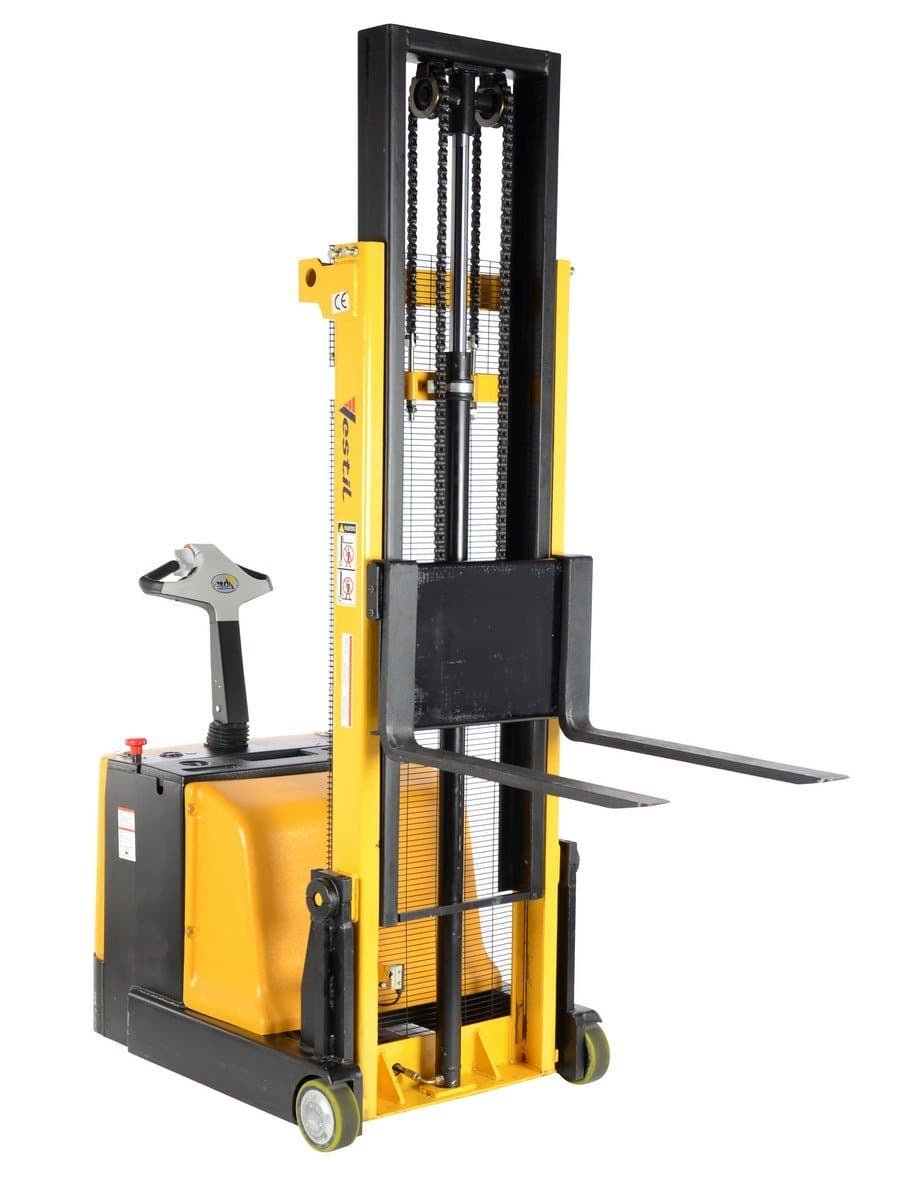

The counter balance design of these powered drive lifts is perfect for die loading, machine feeding, and truck loading and unloading. It comes with a high-torque 24VDC drive and lift motor, ready to handle heavy-duty tasks. The ergonomic handle has an easy-to-operate throttle for infinite adjustment of forward and reverse speeds, lift/lower controls, a unique safety-enhancing emergency reverse function, and a horn. There's also an electromagnetic disc brake with an automatic dead-man feature that activates when you release the handle. The powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which use two 12V batteries), an integral battery charger, and a battery level gauge. It rolls smoothly on poly-on-steel steer and load wheels. With a 0.7 KW drive and 2.0 KW lift motor, it can operate for 3 - 4 hours at full charge and 8 hours when used intermittently. The adjustable forks fit different pallets. The individual forks are 3 feet wide on series S-CB and 4 feet on series S-2CB. The overall size is 32 feet wide by 78 feet long on series S-CB and 35 feet wide by 110 feet long on series S-2CB. High serviceability simplifies maintenance and extends equipment life. The easy-access battery compartment makes battery maintenance a breeze. The proprietary safety-enhancing emergency reverse function is a great safety feature. When activated, the emergency reverse belly switch instantly reverses the direction and moves the unit forward (away from the operator) until the switch is released or after five seconds. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds, and then the unit must be reset to return to normal operation. Battery options are available, like Absorbed Glass Matt (AGM) batteries, which are completely maintenance-free. Their sealed construction eliminates the need for periodic watering and prevents corrosive acid fume spills. All measurements are approximate, and slight variations may occur. The weights shown are approximate shipping weights.
Using Your Counter-Balanced Powered Drive Lift: First, make sure the batteries are charged. You can check the battery level gauge. Hold the ergonomic handle to operate the lift. Use the throttle to adjust the forward and reverse speeds. The lift/lower controls are also on the handle. To lift or lower the forks, just use these controls. When loading or unloading, position the lift carefully in front of the pallet. Adjust the forks to fit the pallet size. Notice that the forks' width varies by series. For series S-CB, they're 3 feet wide, and for series S-2CB, they're 4 feet wide. Safety First: Always be aware of the emergency reverse function. If you encounter a dangerous situation, press the emergency reverse belly switch. It will move the lift forward away from you. But remember, if it's activated for more than 5 seconds, the unit will be disabled, and you'll need to reset it. Maintenance Tips: Keep the battery compartment clean. For most models, there are four 6V batteries, but S-CB-62 and S-CB-118 use two 12V batteries. If you choose AGM batteries, you don't have to worry about watering them or acid spills. Check the electromagnetic disc brake regularly to ensure it works properly. Also, since the lift rolls on poly-on-steel wheels, make sure they're in good condition for smooth movement.
