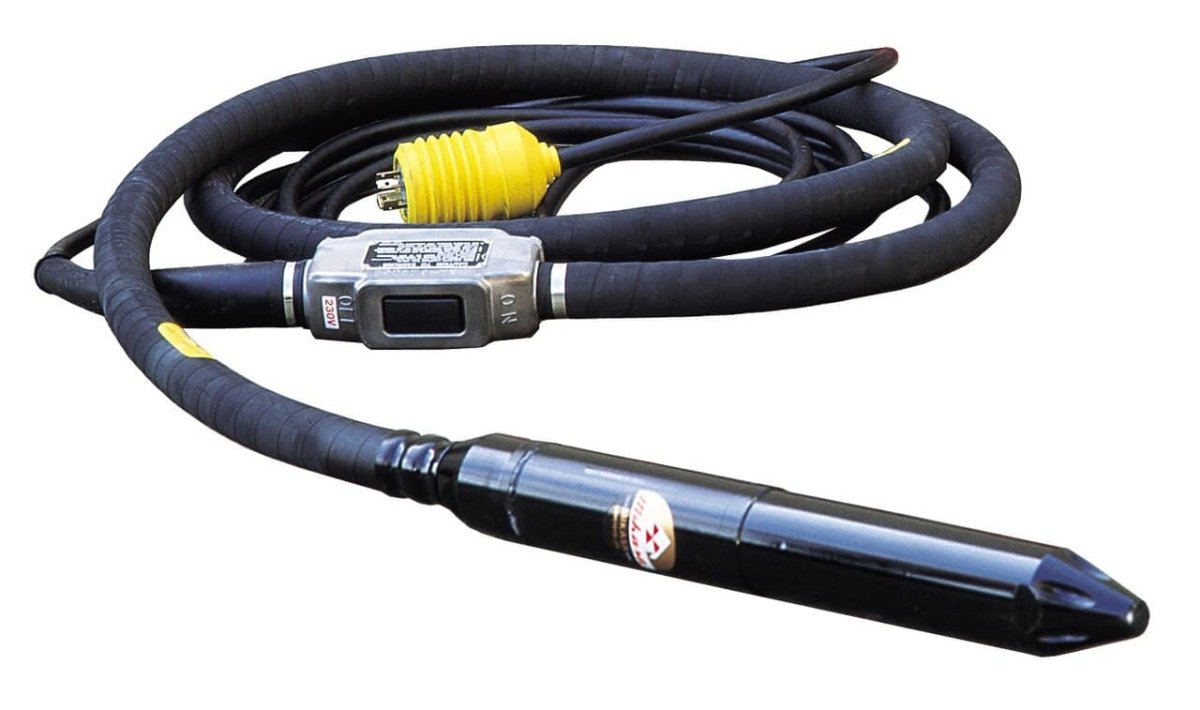

FXA60A4 High-Cycle Concrete Vibrator

The FXA60A4 High-Cycle Concrete Vibrator is a top - notch tool for working with low - slump concrete. It comes with a 2.375' head, a 13.1' hose, and a 33' cord, operating at a 180 Hz cycle. High - cycle vibrators are ideal for low - slump concrete, delivering consistent power to work stiff mixes into corners and around rebar, while effectively removing entrapped air pockets. This vibrator uses a three - phase motor at 180 cycles and needs a special GDP5H generator. It retains 95% of its power under load. Powered by a 4.5 - amp electric motor, it features permanently lubricated oversized head bearings for long - lasting durability. The hose can be extended up to 45 feet (13.5 meters), and it has a waterproof control box. Optional 50 - and 100 - foot (15, 30 meters) extension cords are available.

Using the FXA60A4 High - Cycle Concrete Vibrator is easy. First, make sure you have the GDP5H high - cycle generator connected properly. Once it's set up, insert the vibrator head into the low - slump concrete. Move it around the area, especially into corners and around rebar, to get rid of air pockets. For larger areas, you can extend the hose up to 45 feet or use the optional extension cords. When it comes to maintenance, keep the control box dry as it's waterproof but still needs protection. Check the head bearings regularly as they're permanently lubricated, but any signs of wear should be addressed. Also, store the vibrator in a dry place when not in use. Remember, this vibrator requires a special high - cycle generator, so always use the GDP5H for best results.
