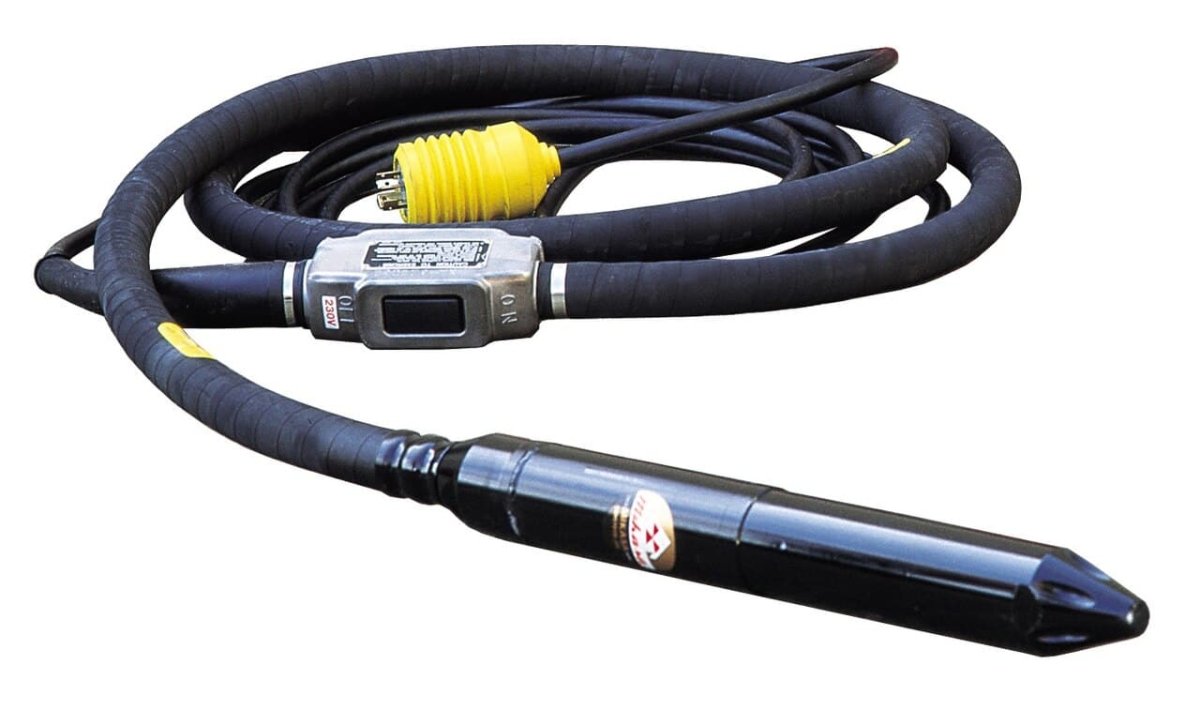

FXA60A6 High-Cycle Concrete Vibrator

The FXA60A6 High-Cycle Concrete Vibrator is a top - notch tool for working with low - slump concrete. It features a 2.375' head, a 20' hose, and a 33' cord, operating at 180 Hz. High - cycle vibrators are essential for stiff concrete mixes, effectively working the mix into corners, around rebar, and removing air pockets. Powered by a 4.5 - amp electric motor, it uses a three - phase motor at 180 cycles and requires the GDP5H high - cycle generator. This vibrator retains 95% of its power under load. It has permanently lubricated oversized head bearings for long - lasting durability. The hose can be extended up to 45 feet (13.5 meters), and the control box is waterproof. Optional 50 - and 100 - foot (15, 30 meters) extension cords are also available.

Using the FXA60A6 High - Cycle Concrete Vibrator is straightforward. First, make sure you have the GDP5H high - cycle generator connected properly. Plug in the cord to the generator and turn it on. Then, place the vibrator head into the low - slump concrete. Move it around corners and near rebar to work the mix and get rid of air pockets. When using, keep in mind that it needs a high - cycle power source. Avoid overloading the vibrator for long periods to maintain its performance. For maintenance, check the lubrication of the head bearings regularly. You can also clean the control box to keep it waterproof. If you need to extend the reach, you can easily attach the optional extension cords or extend the hose.
