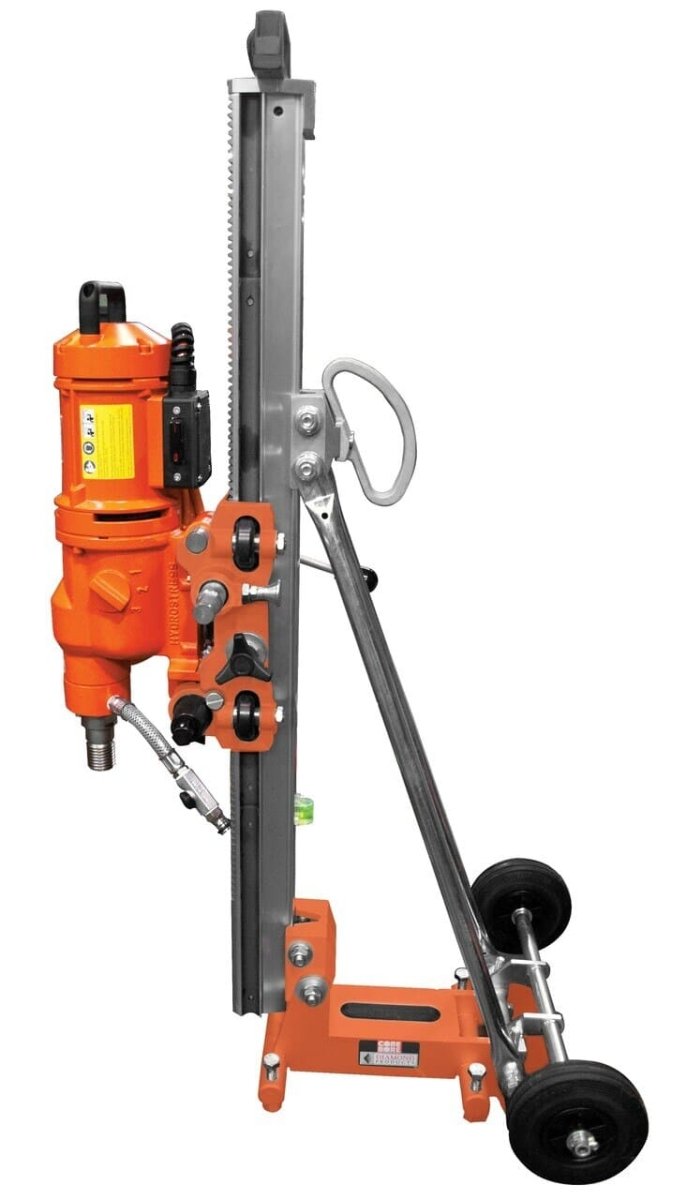

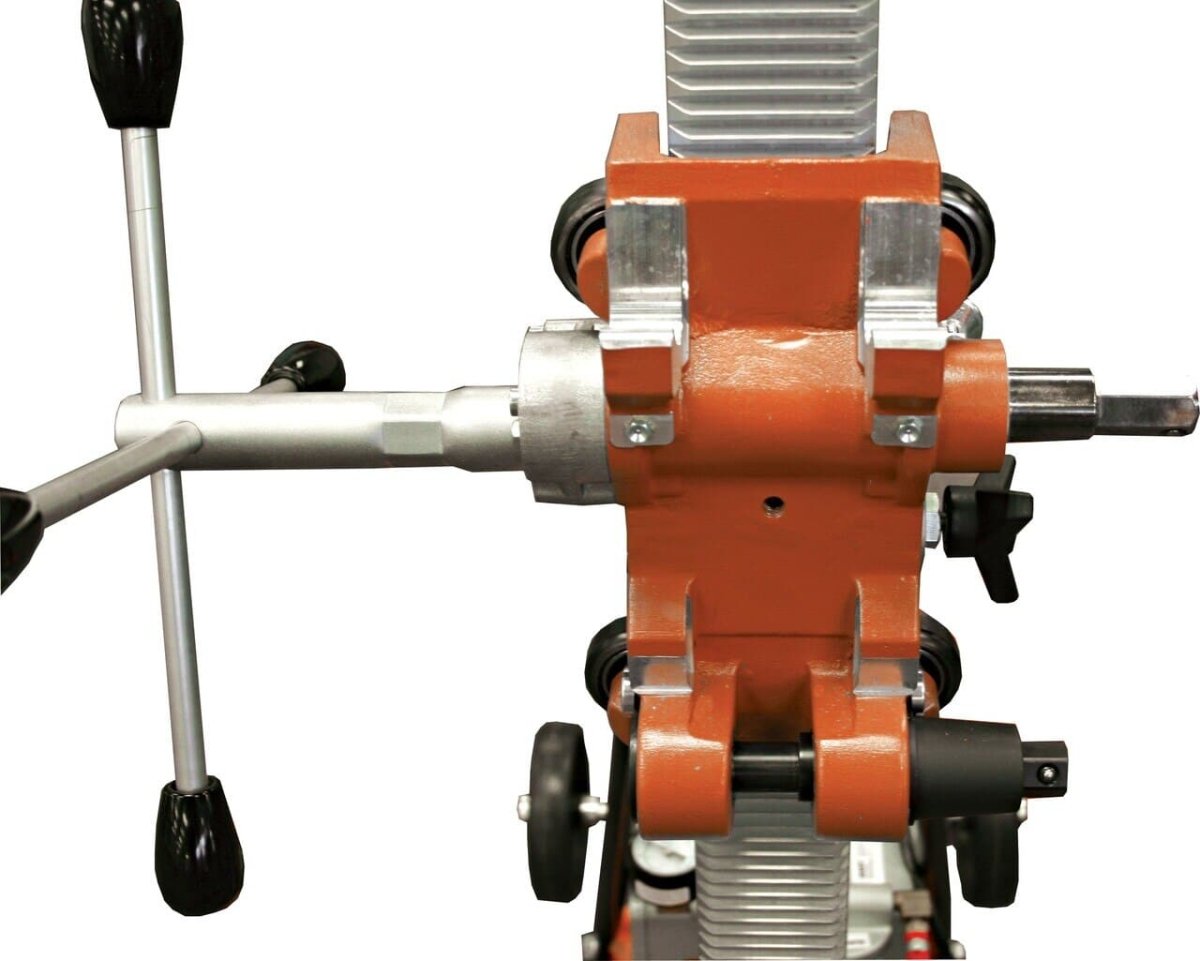

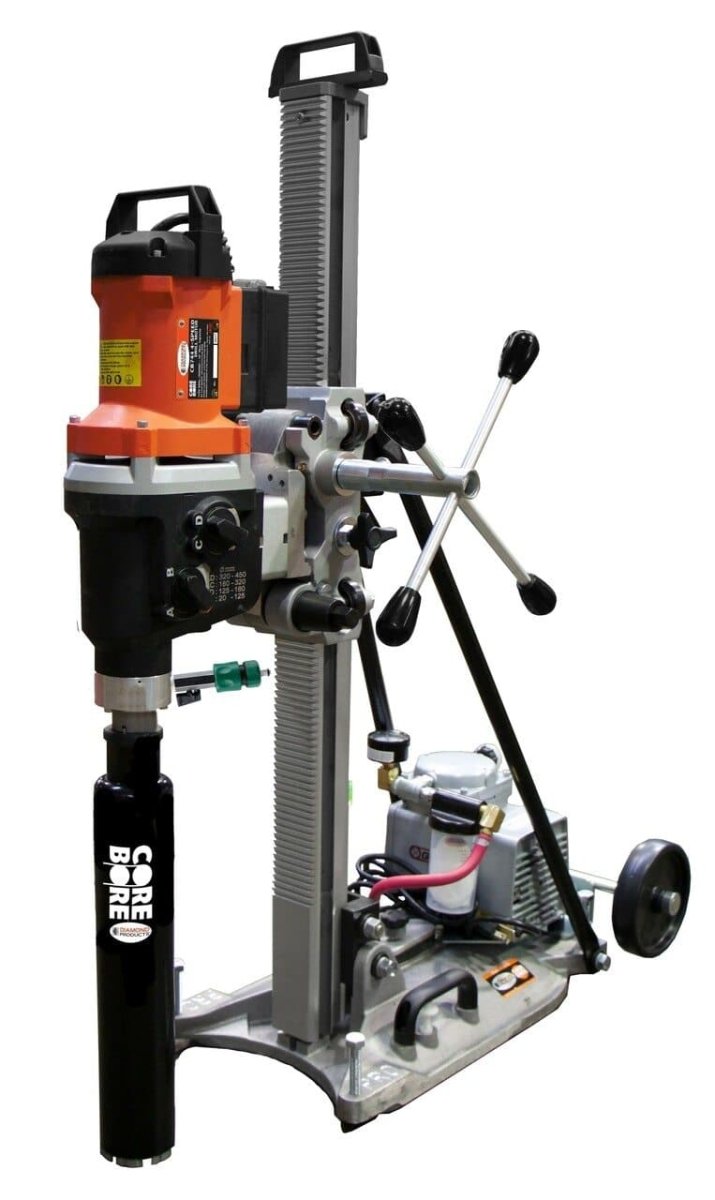

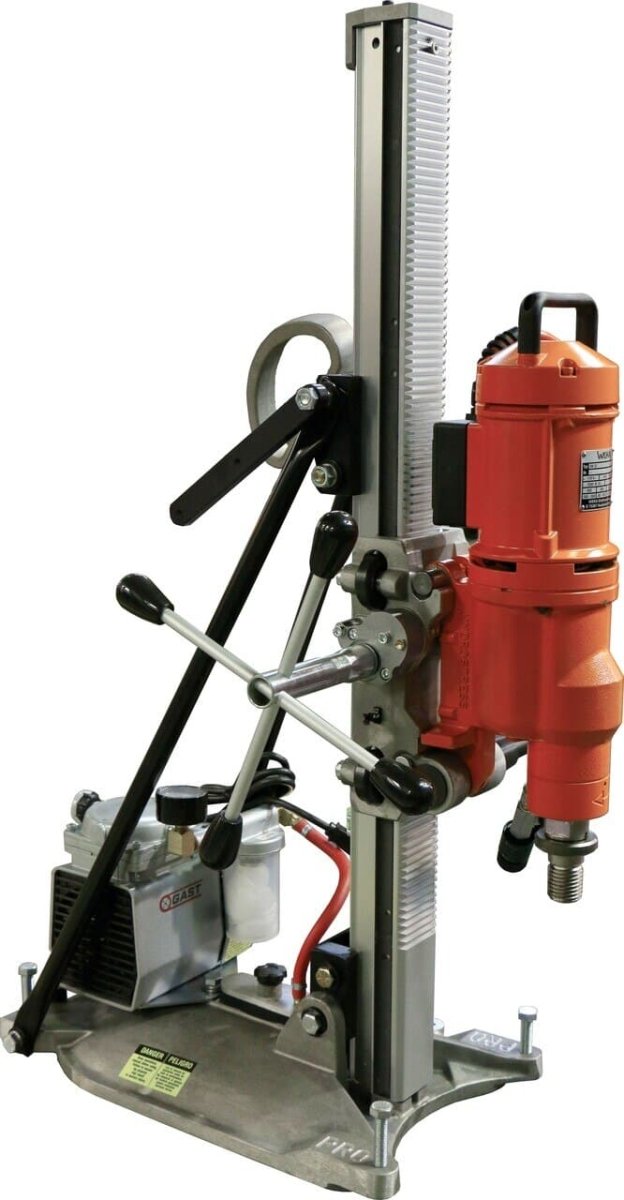

The M-5 Pro Heavy Duty Q.D. Core Rig with Weka Motor is a top - notch tool for professionals. It has an 11' standard bit capacity and is the fastest professional quick - disconnect rig. Key features and benefits include a quick - disconnect motor mount for easy motor removal, a 4 - spoke handle usable on either side, positive carriage and friction locks, a lightweight extruded aluminum column with a reinforced track and steel roller guide, a dual control panel/amp meter in combination rigs, a quick - release vacuum button, a convenient carrying handle, a level bubble on the column, 2 gear ratios for easy carriage feed, and an angle stand to drill up to 45°. There are multiple engine/motor options such as CB744 from Core Bore and DK22F, DK32F from Weka, with different power ratings and RPMs. It comes in complete rigs with or without a vacuum pump and anchor rigs.
Using the M - 5 Pro Heavy Duty Q.D. Core Rig is quite straightforward. First, choose the right motor based on your needs from the available options. If you're using the rig with a vacuum base, connect the vacuum pump properly. To start, turn on the power and adjust the speed according to your task using the dual control panel. The 4 - spoke handle can be set on the left or right side for your comfort. When drilling, use the 2 gear ratios to adjust the carriage feed easily. If you need to drill at an angle, set up the angle stand up to 45°. As for maintenance, regularly check the motor and column for any signs of wear. Clean the steel roller guide and rollers to ensure smooth operation. The quick - release vacuum button should be tested occasionally. Keep the rig in a dry place when not in use. Also, make sure to turn off the power after use. Always follow safety guidelines and don't exceed the recommended power or RPM limits.
