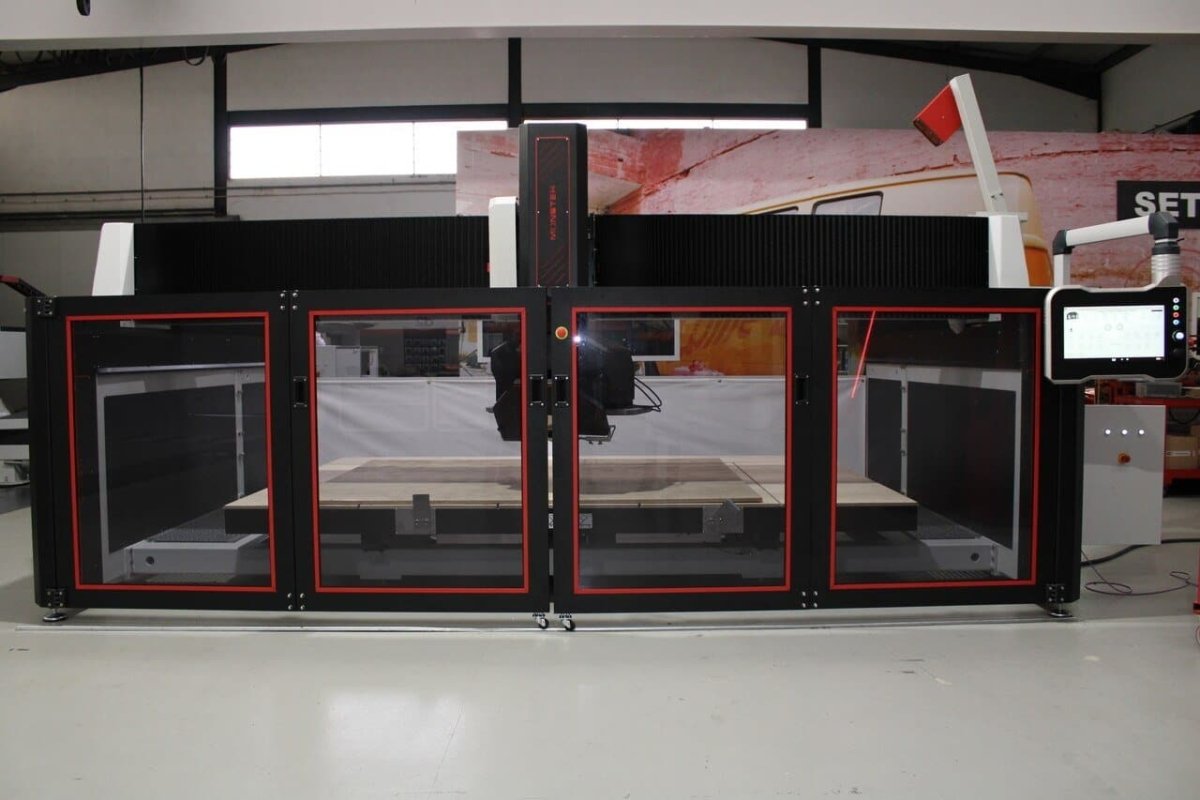

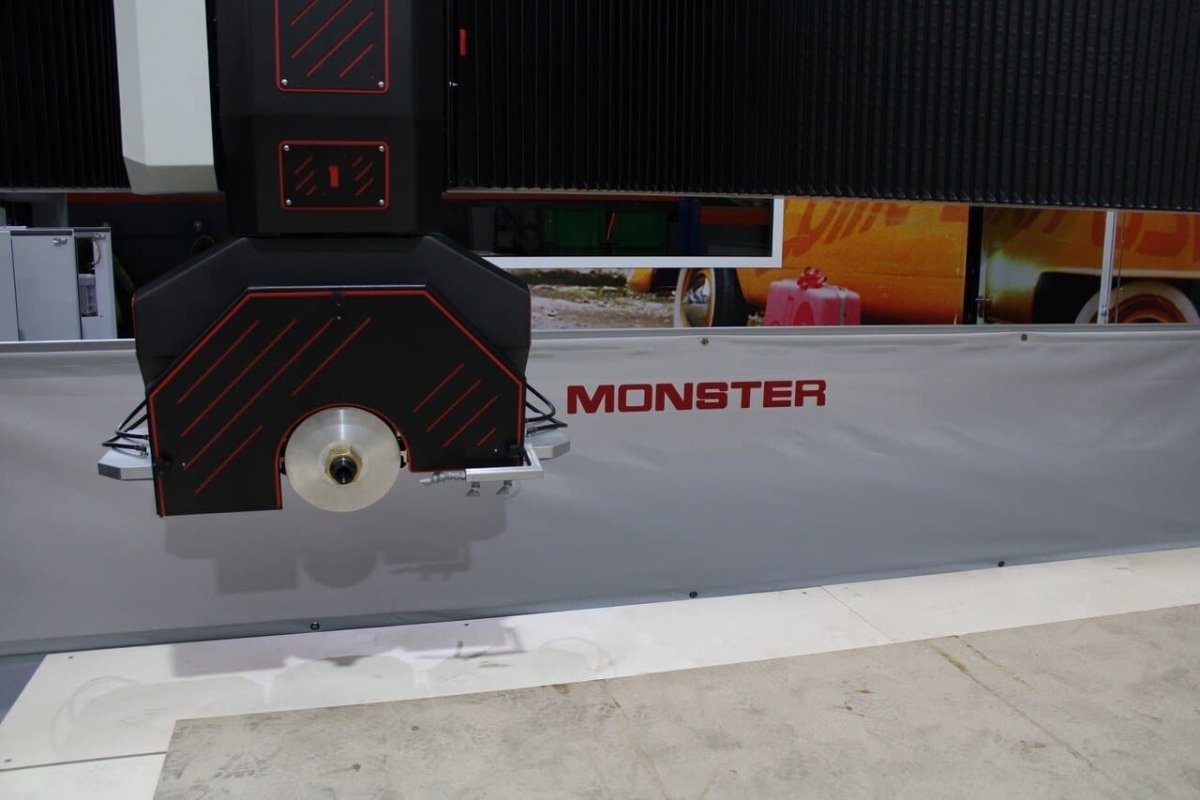

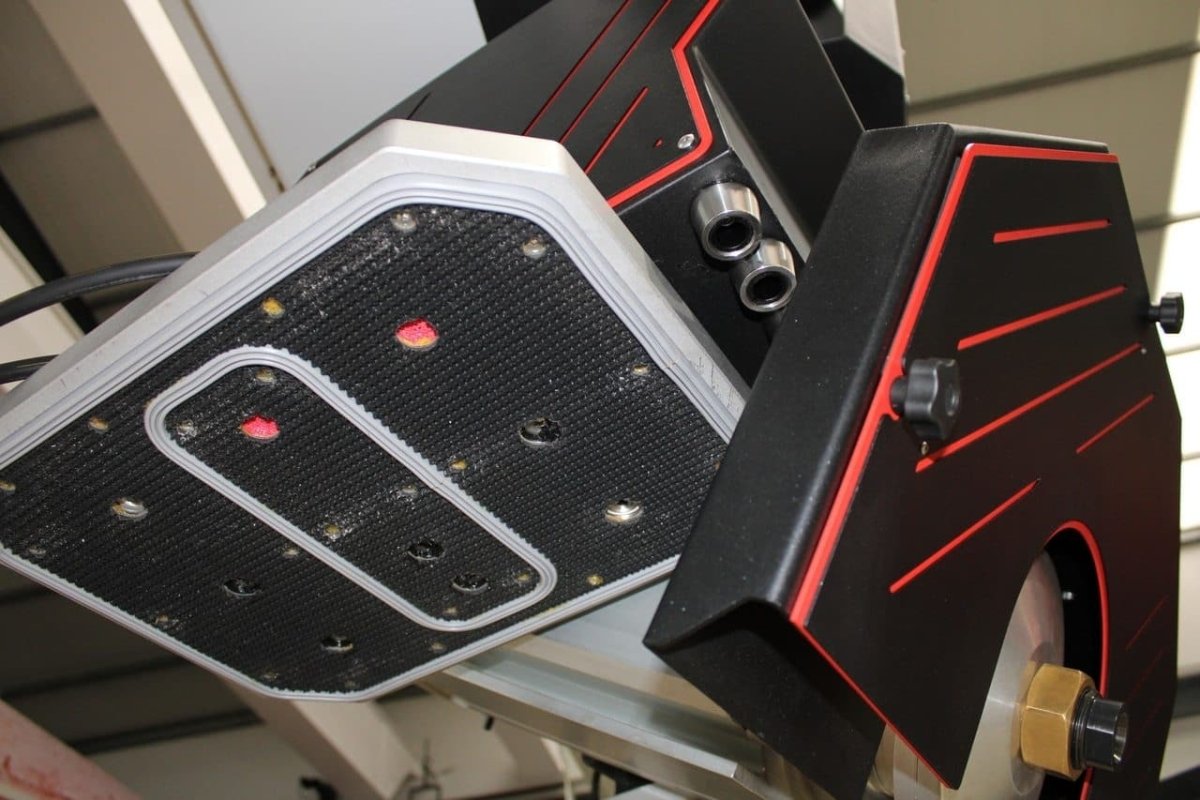

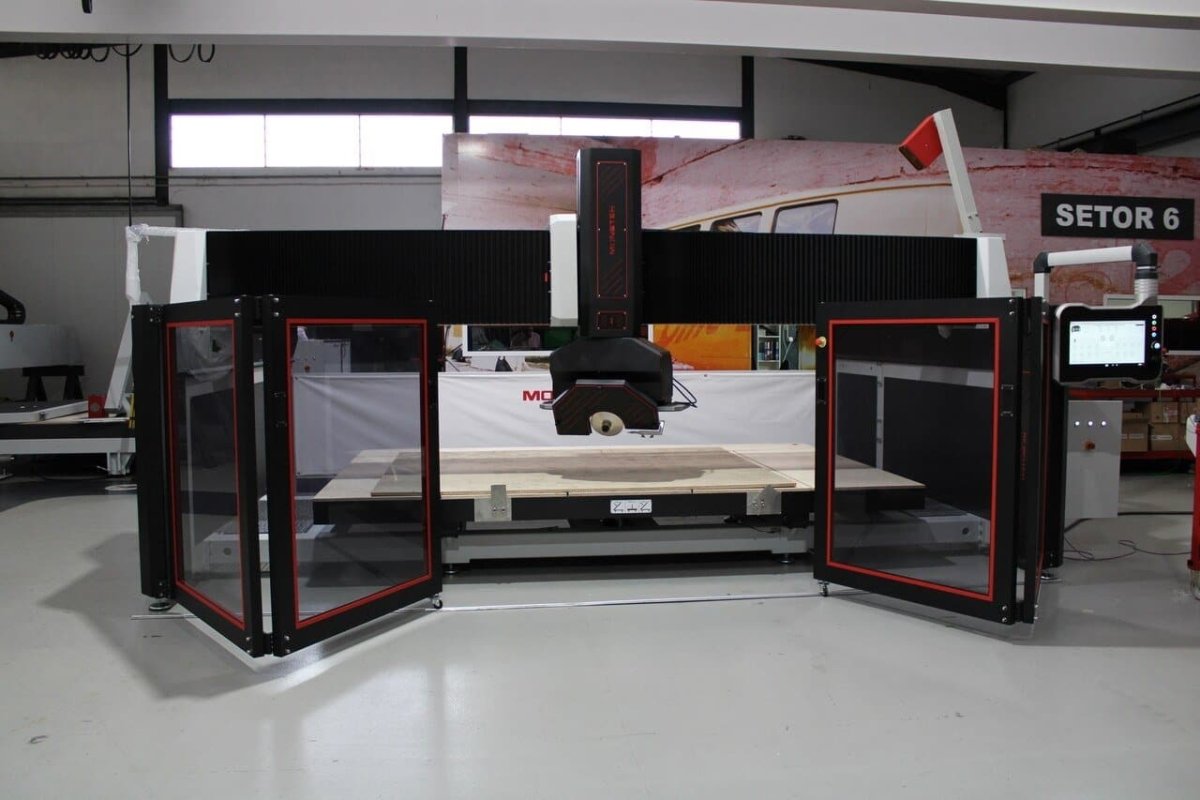

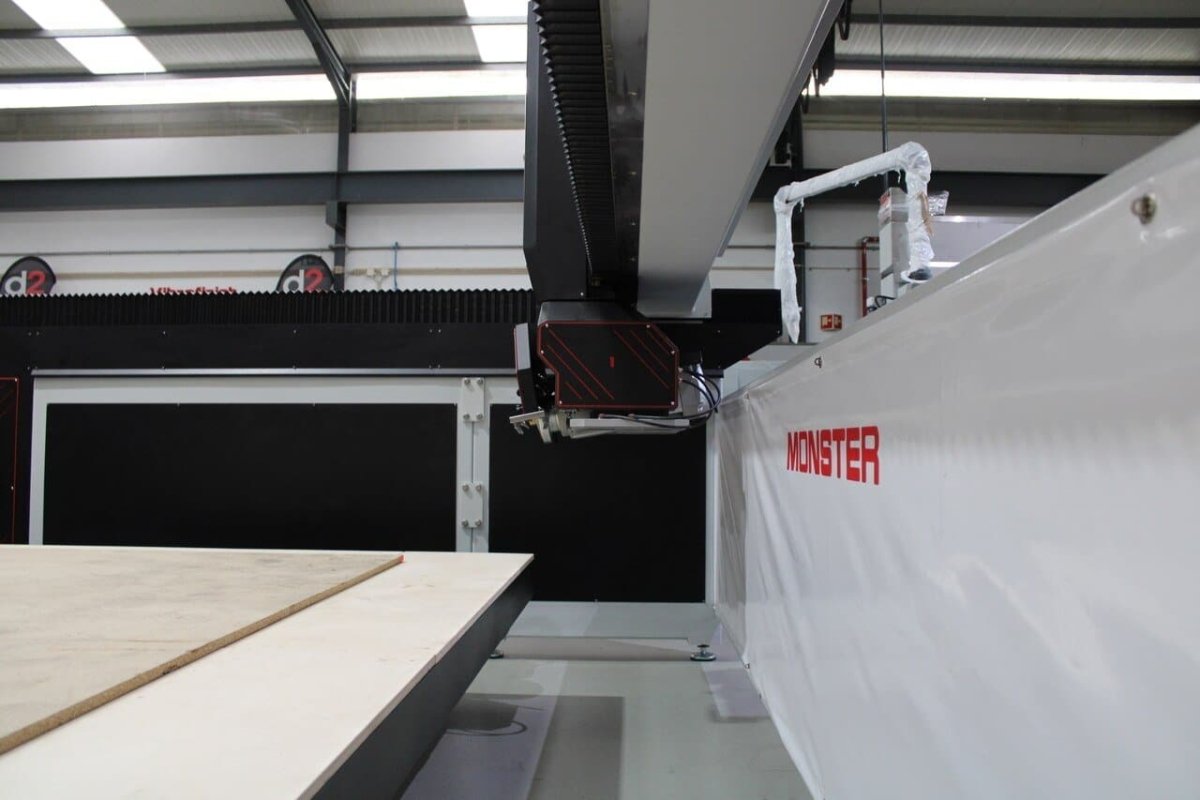

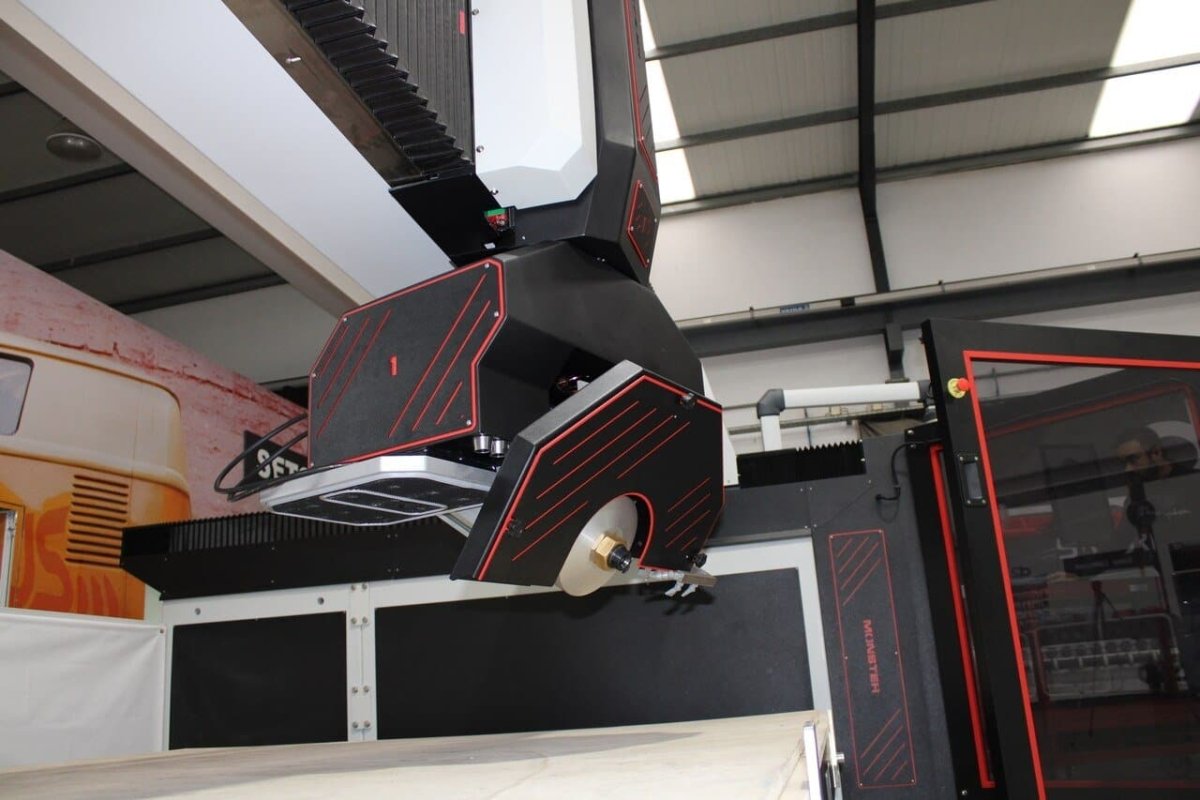

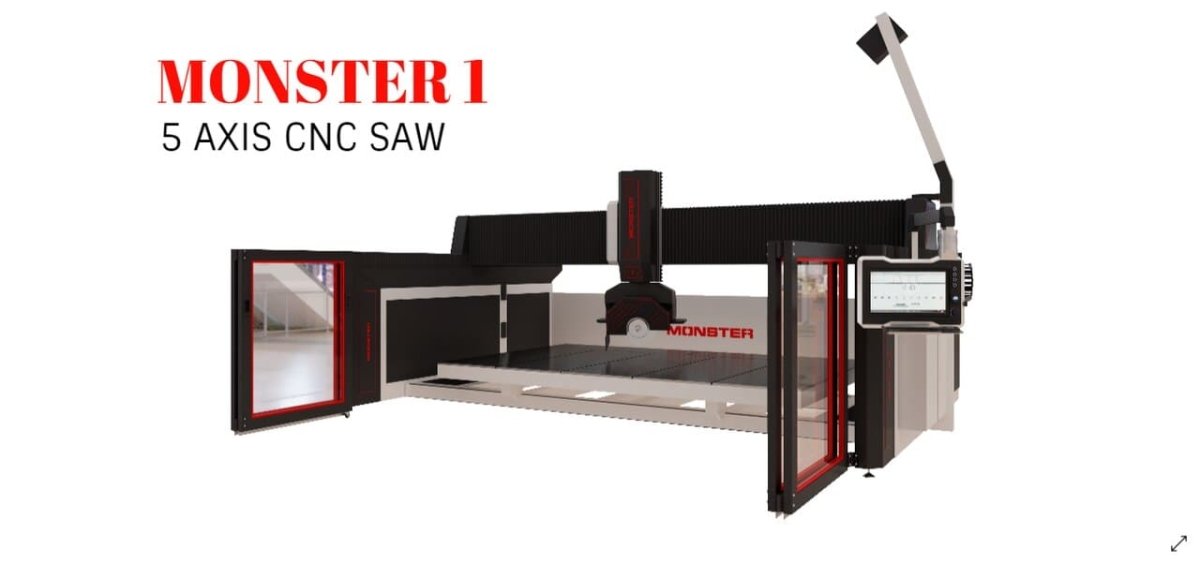

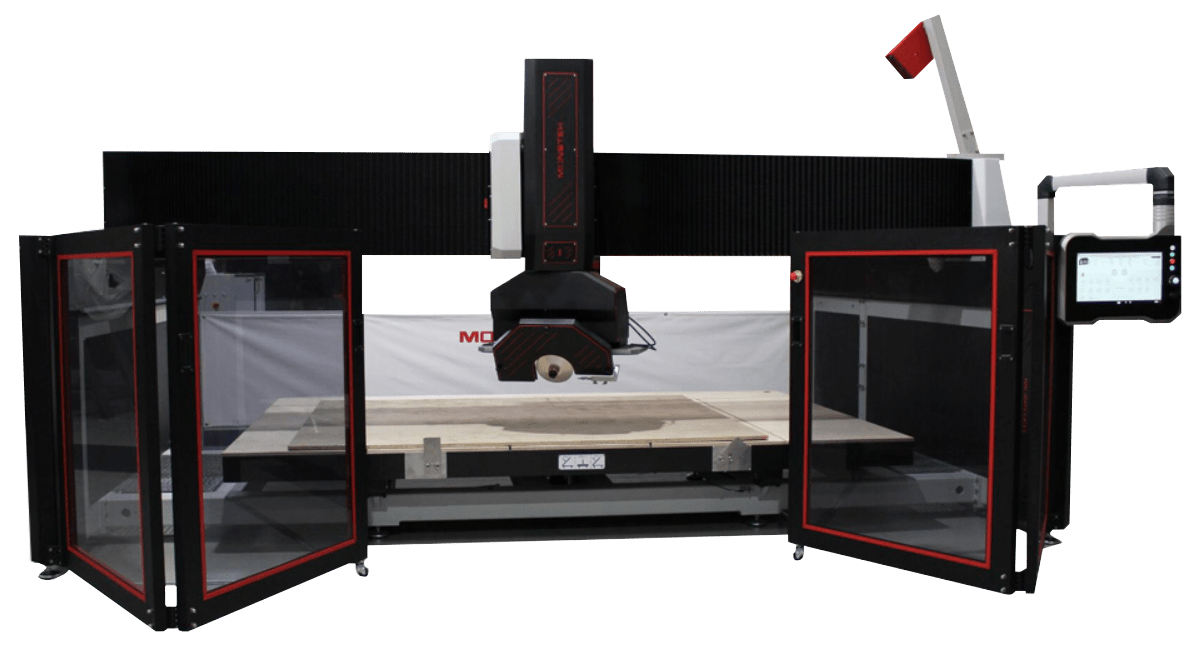

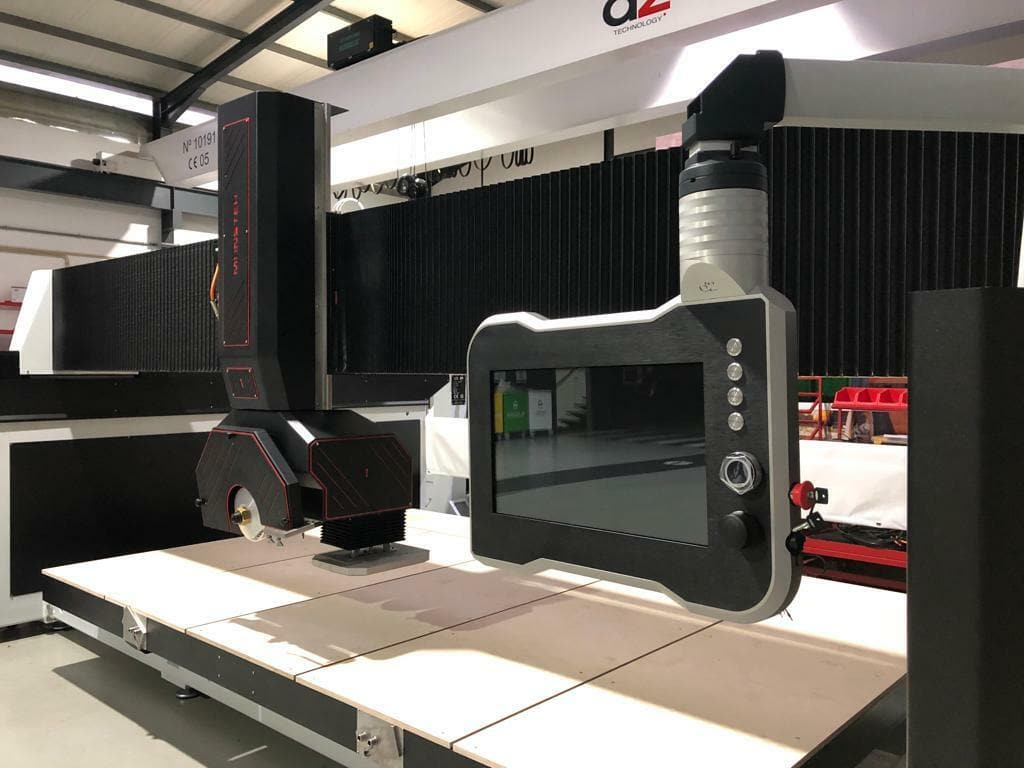

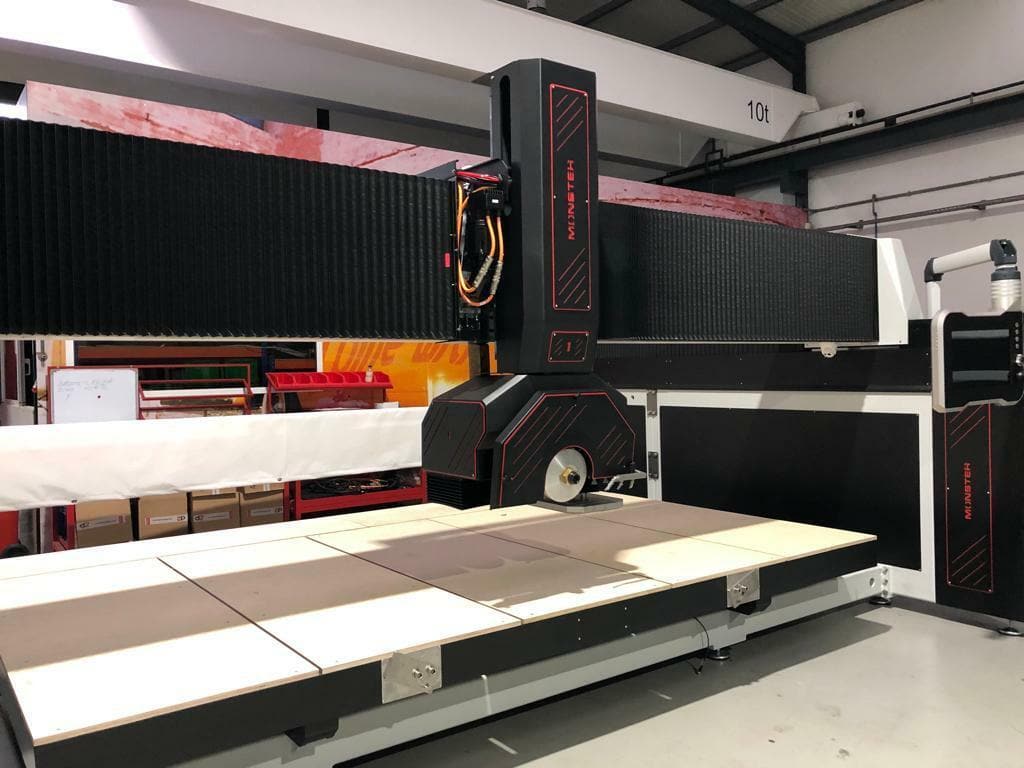

The Monster 1 (M1) is an amazing 5 - Axis CNC saw designed specifically for cutting stone, granite, marble, and more. It's a game - changer for businesses as it significantly boosts production and cuts down on labor costs. There's also the Monster 2 CNC Granite Machine, which comes with a slightly taller axis height and an automatic tool change system. You'll get 2 years of free equipment assistance and free access to the App d2 Info - system. The machine has a 1 - year total warranty. It features a monolith structure made of carbon steel with zinc treatment, ensuring a 10 - year warranty against rust. The 5 - Axis Head is advanced, equipped with a 16kw electro - spindle. It has internal water on the spindle for tool cooling, roll linear guides for X, Y, Z axis movement, and high - precision screw balls for the Z axis. The bridge has a gantry system with 2 synchronized motors on the Y axis. Servomotors come with an absolute encoder, and there's an automatic lubrication system with fail - detection endpoints. The gear boxes have zero backlash, and the high - precision pinion racks are top - notch. The electric box has refrigeration and filtration. The work table is made of wood with working dimensions of 3800 x 2500. The Z axis stroke is 400 mm, X axis is 4000 mm, and Y axis is 3000 mm. The A axis rotates from 0 - 90º and the C axis from + 380 - 380º. The maximum speed of X, Y, Z axes can reach up to 60 mt/Min. It has a CNC control for up to 6 axes, runs on Windows 10, and has a 21' multitouch high - resolution screen with the IRIS WOS 4.0 Work Operative System and an industrial PC with an I5 processor. There are also water and air fault switch systems. Included in the package are a monobloc structure, specific axis strokes, a well - sized table, a 22 HP spindle, an automatic grease system, linear rails, gantry - style Y motion, various axis rotations, head lifters, safety - glass front doors, a high - tech operating system, a photo camera for CAD/CAM nesting, precision probes, a tilting table, an aluminum support for keyboard and mouse, a Smart Eye, laser alignment, and the EASYSTONE NC. Additional options are available, so call today at (800 - 342 - 38760)!

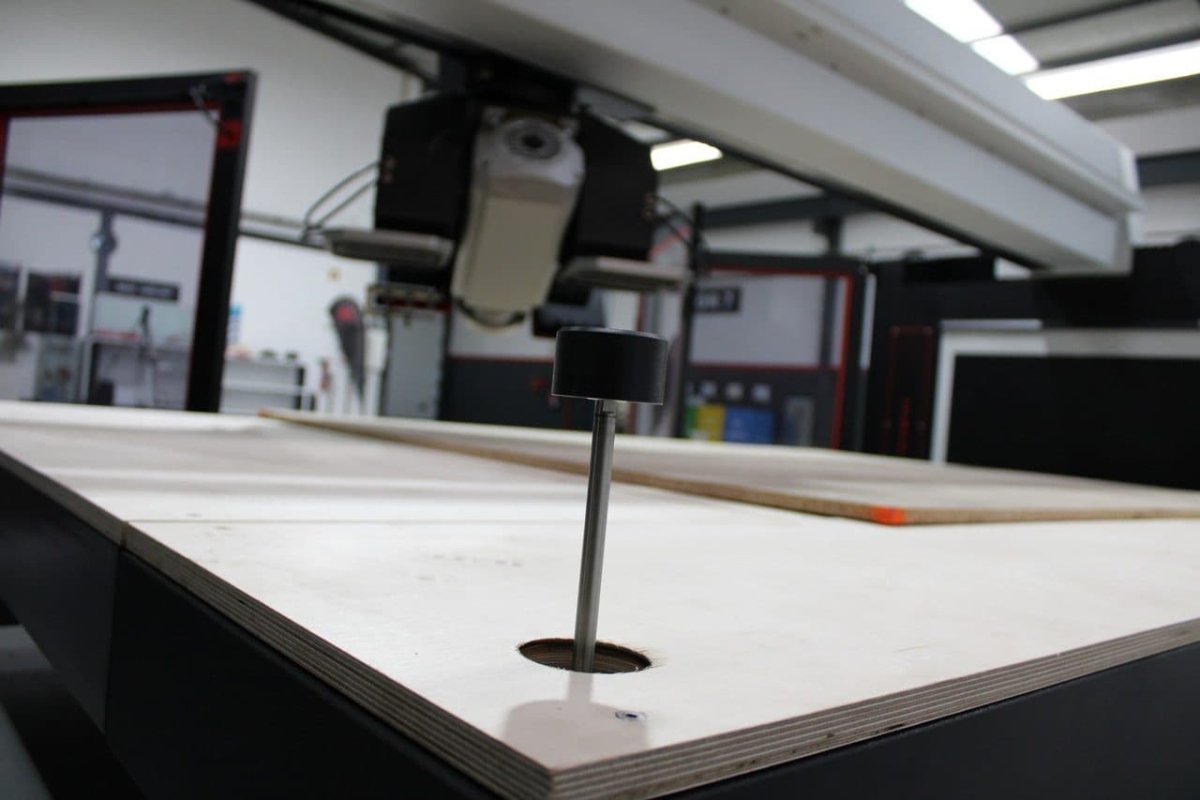

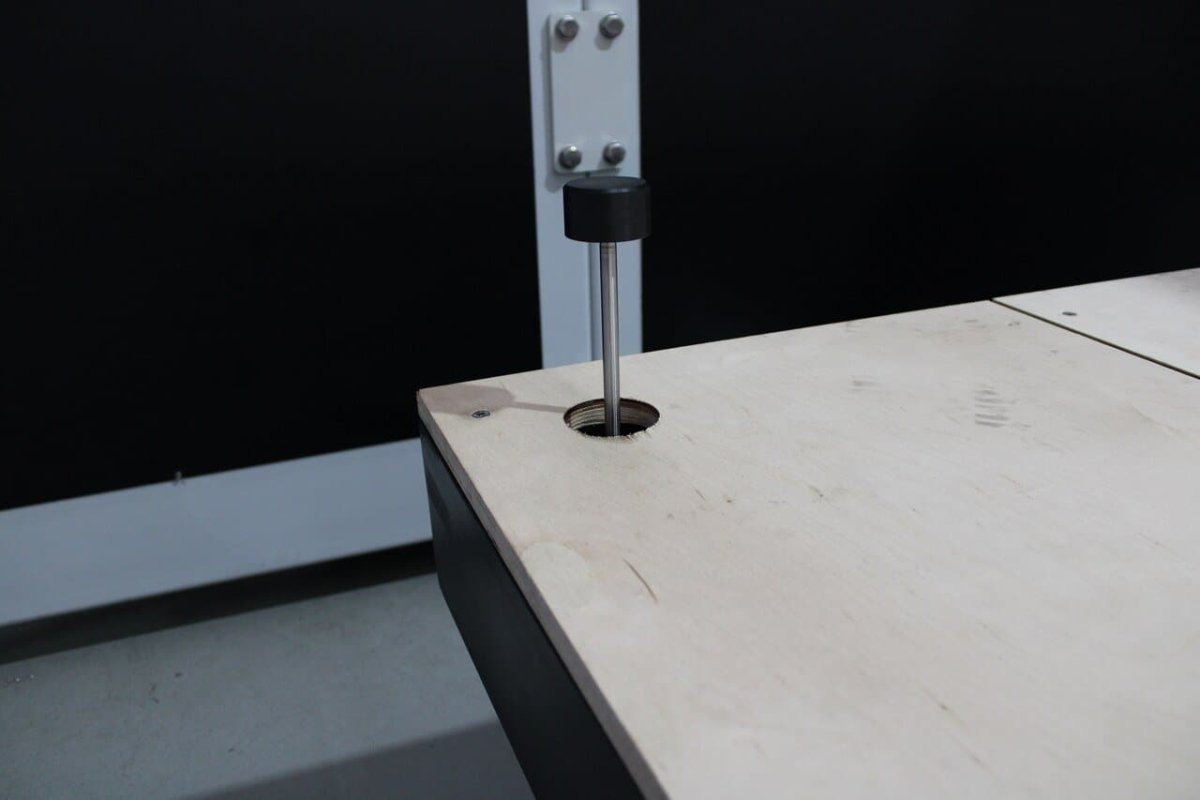

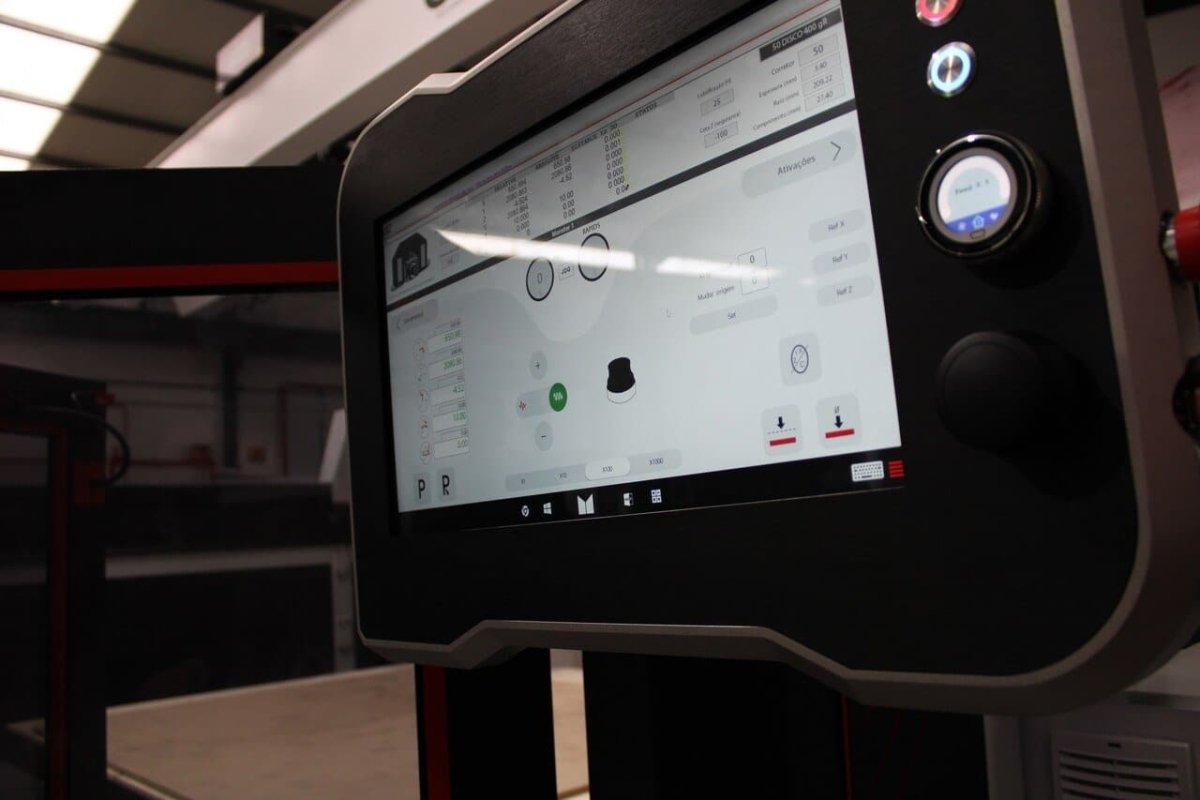

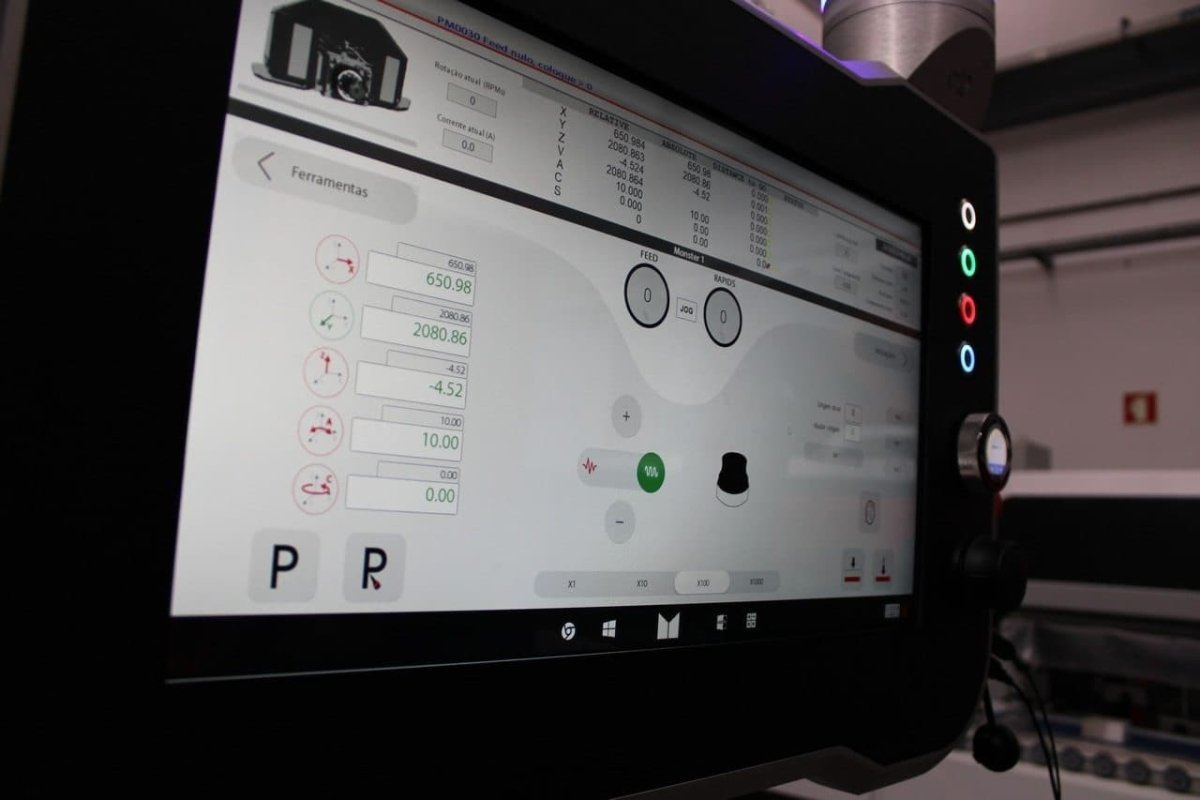

Using the Monster 1 Five - Axis CNC Machine is straightforward. First, power on the machine and let it boot up on the Windows 10 operating system. Once it's ready, you can use the 21' multitouch screen to set up your cutting tasks through the IRIS WOS 4.0 Work Operative System. Make sure to place your stone, granite, or marble on the wooden work table with dimensions 3800 x 2500. The automatic lubrication system will keep the moving parts running smoothly, but you should still check the lubrication endpoints regularly for any signs of failure. When it comes to the tool, the internal water on the spindle will cool it down during cutting, preventing overheating. Be careful when adjusting the axis strokes, like the 400 mm Z axis, 4000 mm X axis, and 3000 mm Y axis. Always follow the safety guidelines, especially when the A and C axes are rotating. The machine has water and air fault switch systems, so if there are any issues with the water or air supply, the machine will shut down to protect itself. For maintenance, keep the electric box clean and make sure the refrigeration and filtration are working properly. Check the linear rails and pinion racks for any signs of wear. The monolith structure made of carbon steel with zinc treatment is durable, but avoid exposing it to harsh chemicals. If you have any questions or need additional options, don't hesitate to call (800 - 342 - 38760).
