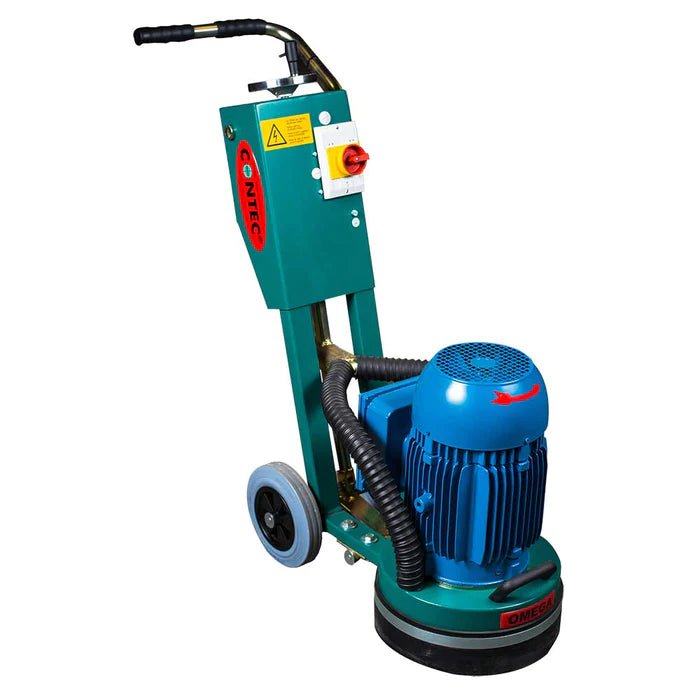

11.5-inch Floor Grinder Single Head, 5HP 230 Volt - Single Phase
The Omega is an incredibly versatile machine, perfect for working on concrete, asphalt, wood, steel, and formwork. It can handle a wide range of tasks, such as grinding concrete, steel, and asphalt, removing paint and coatings, edging in buildings, cleaning and maintaining formwork, cleaning floors, and preparing concrete.
One of the key features of the Omega is its combination of high performance and low weight. Grinding concrete is a breeze with this machine. Its simple design makes it easy to operate, and the handlebar can be quickly adjusted for your comfort and better control. During normal operation, noise and vibration levels are very low.
The Omega's compact size and light weight allow it to pass through any door and be easily moved to different floor levels, even balconies. It's excellent for edge grinding, eliminating the need for angle grinders as it can grind just a few millimeters from a wall. When used with a suitable dust collector, it ensures a dust-free working environment.
Technical Specs
CTGOMEGA
Maximum Working Width:
11.4 in (290 mm)
Motor:
3.7 kW (5 hp) 230 V, Single Phase, 21 Amps
Dimensions (H x L x W):
38 x 30 x 13 in
Weight:
143 lbs
CTGOMEGAP
Maximum Working Width:
11.4 in (290 mm)
Motor:
3.7 kW (5 hp) Gas
Dimensions (H x L x W):
38 x 30 x 13 in
Weight:
143 lbs
Using the Omega Concrete Floor Grinder is quite straightforward. First, make sure you adjust the handlebar to a comfortable position for you. This will give you better control during operation. When starting the machine, follow the instructions for your specific model (either the CTGOMEGA with an electric motor or the CTGOMEGAP with a gas motor).
For different tasks, like grinding concrete or removing paint, choose the appropriate grinding attachment. Move the grinder slowly and steadily over the surface you're working on. Remember, the Omega can get really close to walls, so it's great for edge grinding.
One important thing to note is that you should always use a suitable dust collector. This will keep the working area clean and free of dust, which is better for your health and the machine's performance.
In terms of maintenance, after each use, clean the grinder thoroughly. Check the grinding attachments for any signs of wear and replace them if needed. Also, keep an eye on the motor and other mechanical parts. If you're using the gas-powered model, make sure to follow the regular maintenance schedule for the engine, like changing the oil and air filter as recommended. By taking good care of your Omega Floor Grinder, it will serve you well for a long time.
