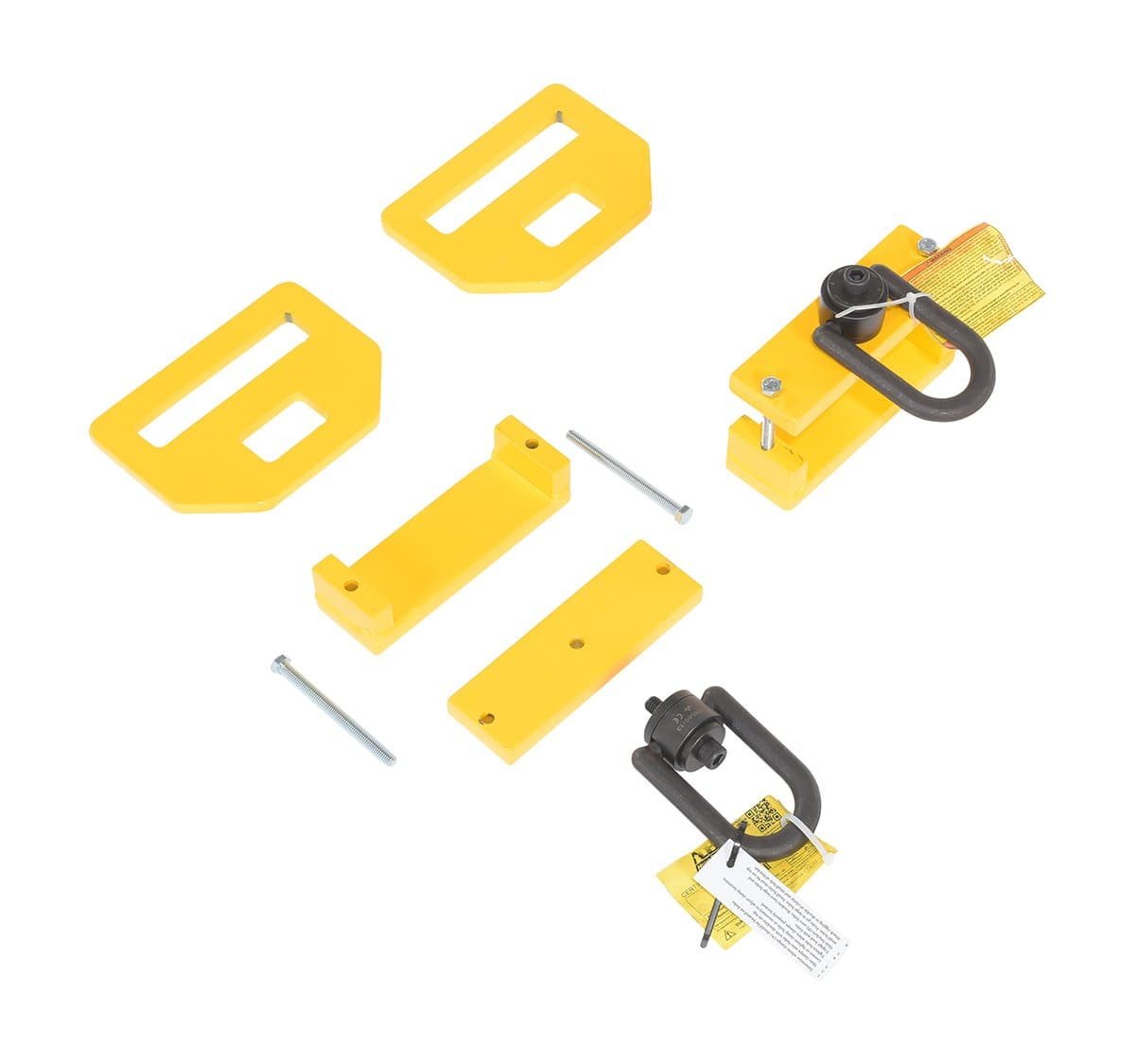

These high - capacity forklift tie - down clamps are an essential tool for safely securing loads during transport. They come in pairs, making a complete set of four pieces (2 brackets and 2 clamps).
Position the eye bracket in front of the load and the screw clamp behind the unit, near the forklift driver. Just slide them over the forks. Then, use your preferred tie - down like a nylon strap or chain (not included) to hold the load firmly in place.
PRODUCT DETAILS
- Uniform Capacity: 4,400 lbs. (2,200 lbs per clamp/bracket)
- Clamps To Fit Forks: 6'W x 2 - 3/4'H
- Made of durable steel
- Finished with a tough baked - in powder - coated yellow paint
EYE BRACKET FEATURES
- Overall Eye Bracket Width: 8 1/4'
- Overall Eye Bracket Height: 6'
- Eye Bracket Fork Opening: 6 1/4'W x 1 1/4'H
- Eye Bracket Lift Opening: 2 1/2'W x 1 1/2'H
- Eye Bracket Thickness: 1/2'
SCREW CLAMP WITH SWIVEL EYE FEATURES
- Overall Screw Clamp Width: 7 3/4'
- Overall Screw Clamp Depth: 2 1/2'
- Max. Usable Height: 2 13/16'
- Min. Usable Height: 1 1/4'
- Each clamp includes a swivel eye
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Using these forklift tie - down clamps is easy. First, you'll get a pair which makes a set of four pieces. Slide the eye bracket over the forks and place it in front of the load. Then, position the screw clamp with the swivel eye behind the load, close to the forklift driver. After that, use a nylon strap or chain (not included) to secure the load. Just make sure the load doesn't exceed the 4,400 lbs uniform capacity. Remember, all measurements are approximate, so there might be slight variations. As for maintenance, keep the clamps clean and check for any signs of wear or damage regularly. If you notice any issues, stop using them and contact us for further guidance.
