Description

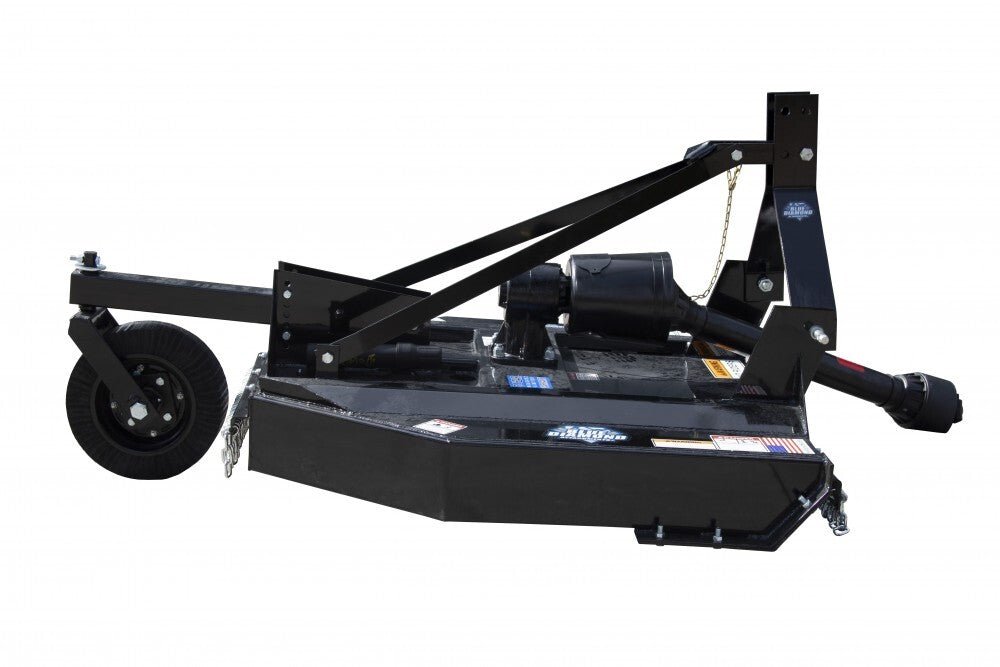

The Blue Diamond® 4-foot Rotary Cutter is a top - notch tool crafted for standard duty tasks like cutting weeds, grass, and light brush up to 1.5 inches in diameter. It pairs perfectly with tractors having 15 to 45 horsepower and can cut a width of up to 48 inches. This cutter features a single spindle with two free - swinging blades, which cleverly lessens the shock when hitting a stationary object. A standard slip clutch safeguards the gearbox and driveline from harm. The standard equipment includes a driveline, shields, clutch shields, and front and rear chains. Key features are a fully welded gear - box channel and deck, replaceable wear skids, 1.5 - inch cutting capacity, a 5 - year limited gear - box warranty, a front/rear chain discharge shield, and a 2 - year warranty. Product specs show details like part number 403010, model 4 - foot, horsepower range 15 - 45, width 48 feet, weight 538 lbs, cutting capacity 1.5 inches, deck thickness 11 Guage, side bands 7 feet, PTO drive shaft Series 4, stump jumper PAN, 55 - hp gearbox, laminated wheels, Category 1 hub, 5 - year limited gear - box warranty, and standard chain guards.
Using your 4 - foot Standard Duty Rotary Cutter is easy. First, make sure your tractor has between 15 and 45 horsepower. Attach the cutter using the provided driveline. Before you start, check that all the shields, clutch shields, and chains are in place. When you're cutting, go at a steady pace. If you hit a stationary object, the free - swinging blades and slip clutch will help protect the cutter. Keep an eye on the cutting capacity - don't try to cut anything thicker than 1.5 inches. For maintenance, regularly check the wear skids and replace them if they're worn out. Inspect the gearbox and driveline for any signs of damage. Remember, the gearbox has a 5 - year limited warranty and the whole cutter has a 2 - year warranty, so if you have any major issues, reach out for support.
