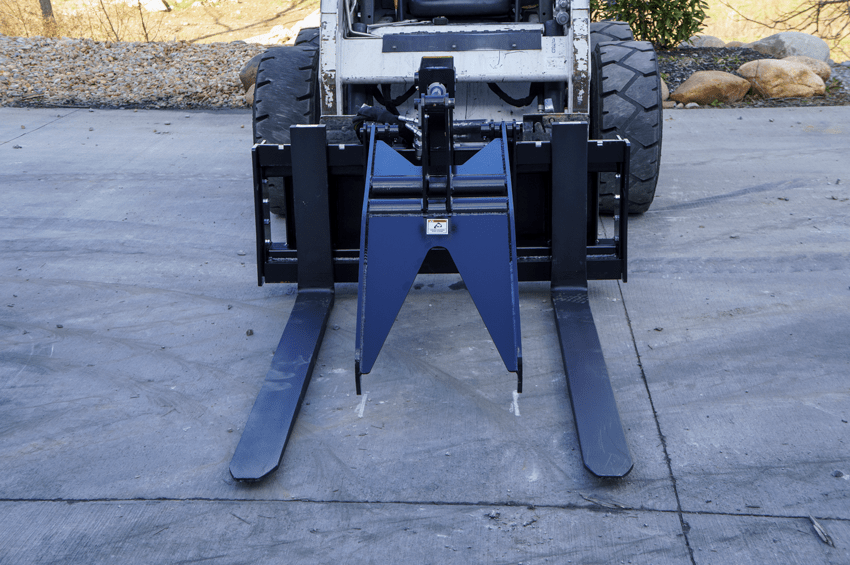

The Blue Diamond® Severe Duty Grapple Fork stands out as the industry's top choice for its outstanding capacity and durability. This skid - steer attachment is compatible with Class 3 fork tines in various widths and lengths. With a powerful top clamp, it can firmly secure your materials, boasting a remarkable 10,000 lb. capacity. It comes fully equipped with hoses and couplers, ready for immediate use. The top clamp offers four mounting positions, ensuring the best grip for your specific application. Key features include a 10,000 lb. capacity, compatibility with Class 3 tines, availability of 48″, 60″, 72″, 84″, and 96″ tines, a 45 - inch width, a 4 - position top - clamp, 3 - position tine width adjustment, and it weighs 850 lbs. plus tines. There are two part numbers: 106012 for the Grapple Fork and 106016 for the Mat Grapple, both Severe Duty, 10,000 Lbs., with tines not included and fitting Class 3.
Using your Blue Diamond® Severe Duty Grapple Fork is a breeze. First, make sure the skid steer is turned off and parked on a flat surface. Attach the grapple fork to the skid steer using the appropriate couplers and hoses that come with the product. Select the right tine width and length for your job from the available options. Adjust the top - clamp to one of the four positions for a good grip on the materials. Once everything is set, start the skid steer and you're ready to lift and move materials. When using it, always be aware of the 10,000 lb. capacity limit. Overloading can damage the grapple fork and pose a safety risk. Make sure the materials are evenly distributed in the fork for better stability. For maintenance, after each use, clean the grapple fork to remove dirt and debris. Check the hoses and couplers for any signs of wear or damage. Periodically inspect the top - clamp and tine adjustment mechanisms to ensure they're working smoothly. Keep the grapple fork in a dry place when not in use to prevent rusting.
