Pencil Rods

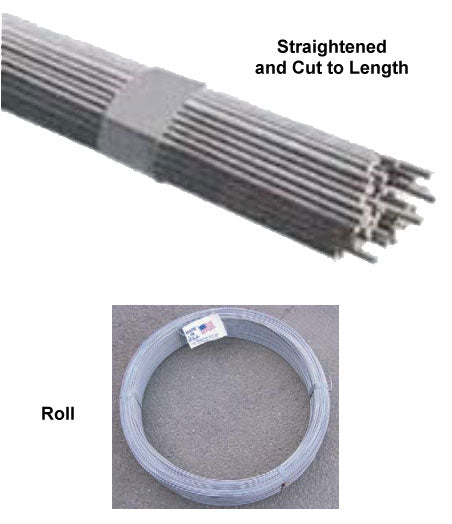

Pencil Rods are made of mild steel with a smooth surface. They come in coils of about 600 feet (100lb. coils) or can be straightened and cut to your desired length. These rods are great for all kinds of forming needs. With a 2:1 safety factor, the ¼” diameter rod has a safe working load of 1,250 lbs, the 3/8” diameter rod can handle 2,250 lbs, and the 1/2” diameter rod supports 3,750 lbs. Key features include the option of rolls or cut - to - length pieces, and they are compatible with all forming systems. Here are the part numbers and bundle details: For straightened and cut - to - length, OCM part numbers PR25 - 10 and PR25 - 20 come in bundles of 50. The roll type, with OCM part number PR25 - ROLL, is sold in bundles of 1.

Using Pencil Rods is quite straightforward. First, choose the right diameter based on your working load requirements. If you need a long continuous rod, go for the coil option. If you need specific lengths, select the straightened and cut - to - length rods. When handling these rods, always keep in mind the safe working load to avoid any accidents. Store them in a dry place to prevent rusting. If they get dirty, you can simply wipe them clean with a dry cloth. Regularly check for any signs of damage like bends or cracks that could affect their performance.
