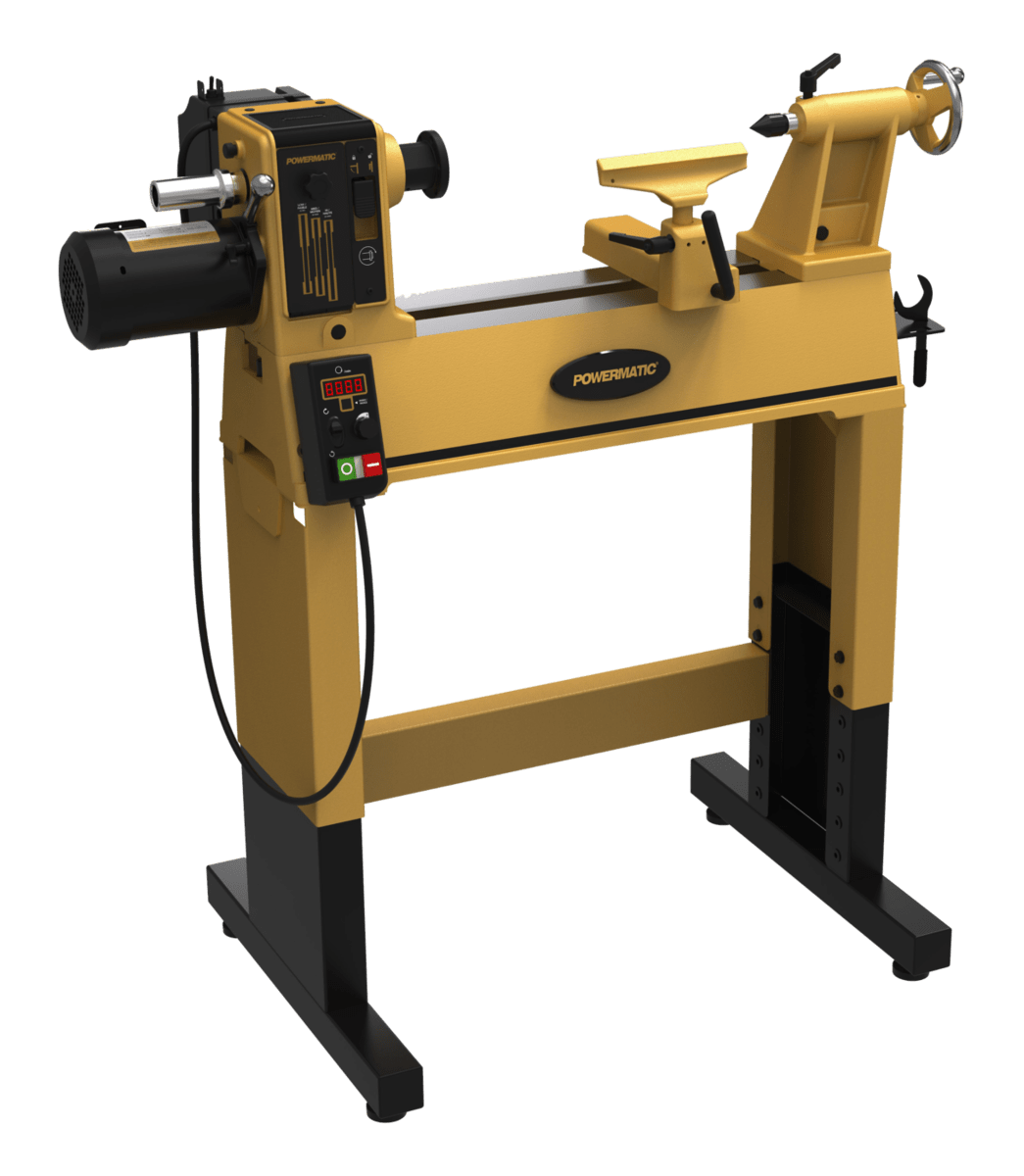

For almost a century, Powermatic has been committed to serving woodworkers. As a top player in woodturning, Powermatic is excited to present the high - powered PM2014 Model Lathe. It only needs a 115V single - phase power source, yet the inverter offers 1HP, 230V, 3PH performance. This gives users maximum speed with minimal input. It has a 14 - inch swing over the bed and 20 inches between centers, which can be extended with an optional 13 - inch bed extension. The premium sliding headstock and removable tailstock provide more clearance for outboard turning. A sturdy cast - iron bed reduces vibration when working on larger and rougher pieces. The magnetic control box shows both digital indexing and spindle speed readout, with 24 positive locking indexing positions. The new ergonomic stand can be adjusted from 34 inches to 46 inches from the centerline to the floor, making it accessible to users of different heights.
### Features
- Acme threads on the tailstock ensure smooth operation and long - lasting use.
- An attached tool caddie lets you easily reach centers, wrenches, and accessories.
- The banjo has a non - marring, pinch - style clamp for a stable tool rest placement.
- Chrome - trimmed hand wheels offer an ergonomic and comfortable feel.
- It comes with an 8 - inch tool rest with a 1 - inch post.
- The lathe can be easily disassembled for better portability.
- There's a main power disconnect on the rear of the headstock for safety.

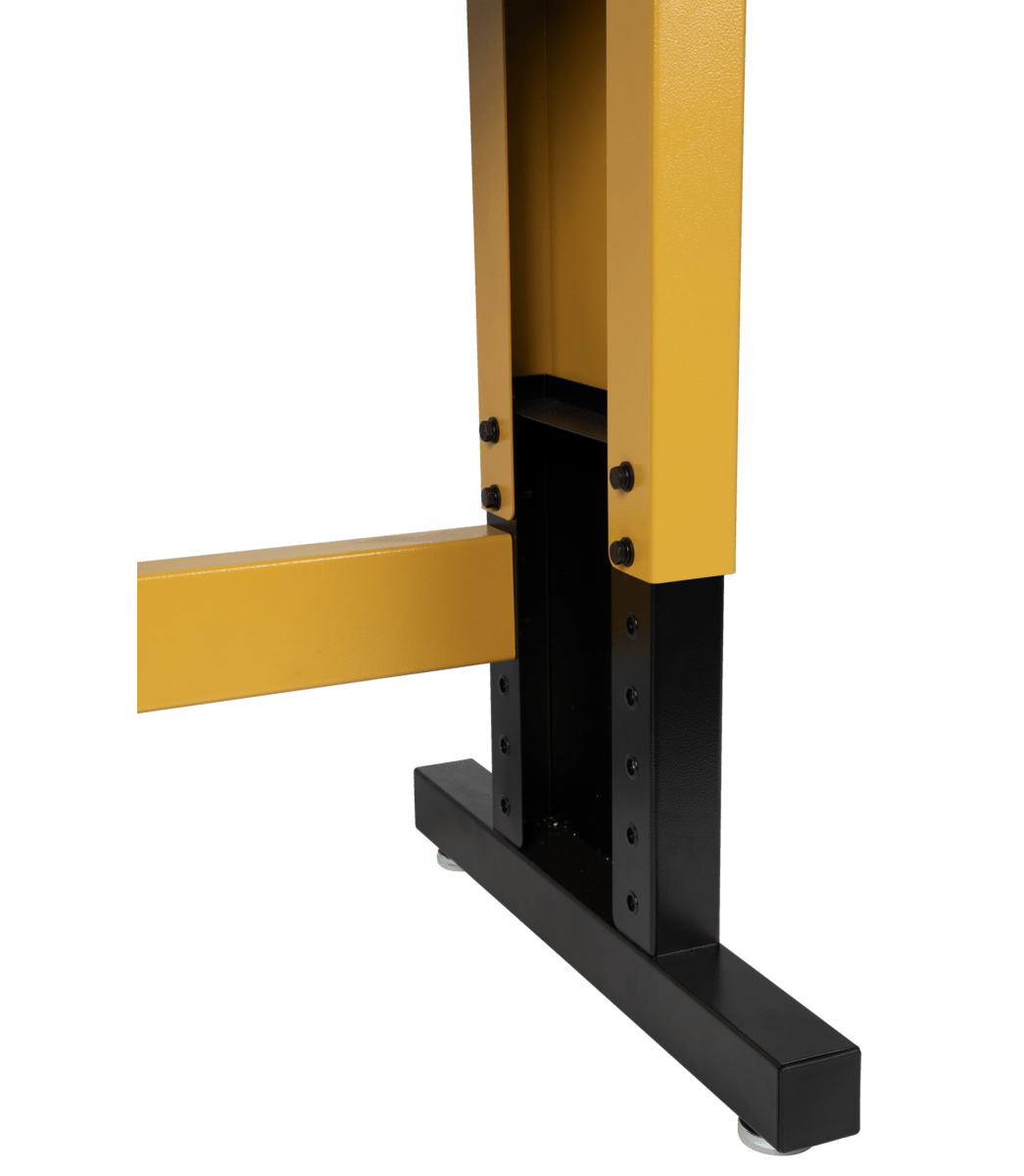

- It has the widest height adjustment range in the Powermatic family, from 34 inches to 46 inches from the centerline to the floor for maximum control and comfort.
- It has variable speeds from 15 RPMs to 3600 RPMs.
- The inverter keeps the torque consistent by constantly monitoring the motor.
### Specifications
| Specification | Details |
|--|--|
| Stock Number | 1792014AK |
| Bed Construction | Cast Iron |
| Distance Between Centers (In.) | 19 - 1/4 |
| Gross Weight (Lbs) | 205.7 |
| Motor Amps | 3 |
| Motor (HP) | 1 |
| Motor Phase | 1 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 230 |
| Net Weight (Lbs.) | 183 |
| Overall Dimensions (L x W x H) (In.) | 52 x 24 x 18 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 33.25 x 18.9 x 22.83 |
| Swing Over Bed (In.) | 14 - 1/4 |
| Weight (Lbs.) | 183 |
Using the Powermatic 2014 Lathe is easy. First, make sure it's connected to a 115V single - phase power source. Adjust the stand to a comfortable height between 34 and 46 inches from the centerline to the floor. You can place your wood piece between the centers and use the variable speed feature, which ranges from 15 RPMs to 3600 RPMs, depending on your needs. The attached tool caddie has all the necessary tools within reach. When doing outboard turning, use the sliding headstock and removable tailstock for more clearance.
For safety, always use the main power disconnect on the rear of the headstock. Keep in mind that this product may cause cancer and reproductive harm as indicated by Prop 65.
To maintain your lathe, regularly check the Acme threads on the tailstock for smooth operation. Wipe down the cast - iron bed after each use to prevent debris build - up. If you need to move the lathe, it can be easily disassembled. Also, keep an eye on the motor and let the inverter do its job of keeping the torque consistent.
