PT-105HD-V2 - CNC Plasma Table

Our PT-105HD-V2 is the next generation of plasma tables. It's built with strong structure to handle 5’ x 10’ sheets. The automatic height detection is great for production runs. It comes almost fully assembled and includes software. If you want a version with an integrated water bath, check out the Baileigh 60” x 140” CNC Plasma Table PT-105HD-W.

Plasma torch systems are sold separately. You can pick the Thermal Dynamics Cutmaster model that suits your needs. This table works with automatic torches, not manual ones. The BOBCAD-CAM EXPRESS DESIGN SOFTWARE is included. The PT-105HD has the BobCAD-Cam Express programming software as standard. You can design your project on any computer and load it to the plasma table via a USB drive.

Features

• Runs on 220-volt single-phase power.
• Control the X, Y, and Z-axis movement from the sturdy podium with a large console screen and keypad.
• Comes with easy-to-learn design software that can be loaded into any basic PC.
• The console has a pre-loaded library of shapes that you can resize and change at the table without a computer.
• Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.
• The gantry can move aside during loading of a full 10-foot sheet, reducing the risk of machine damage.
• The high gantry (one of the highest in the industry) allows you to clearly see its movement for better adjustment and control.

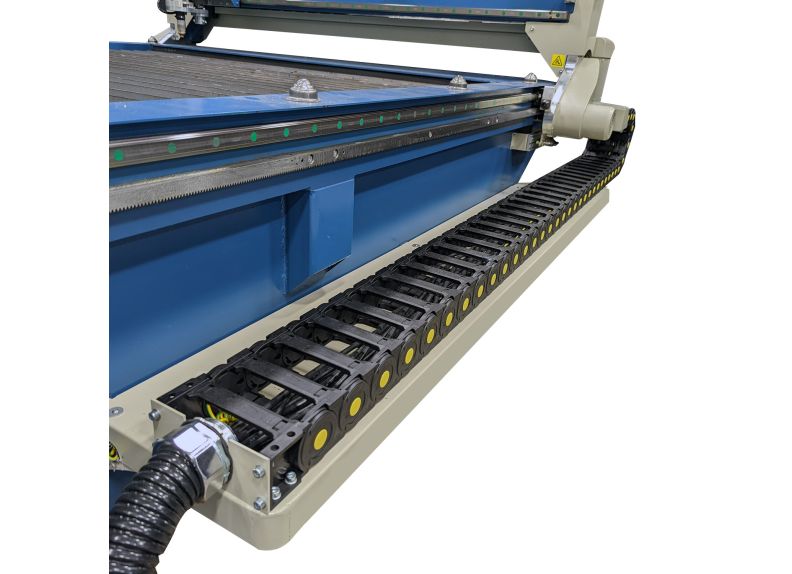

• The axes run on heavy-duty Hiwin square rails.
• Wipers on the rails keep welding dust out of the slide, ensuring a smooth transfer without noisy friction from dirt build-up.
• Our design reduces the risk of damaging the table while loading or pinching your forklift, unlike competing plasma tables with recessed work areas.

Specifications

Stock Number	BA9-1231495A
Drive	Servo Motor
Input Power	220 Volt Single Phase
Model Number	PT-105HD-V2
Prop 65	Cancer and Reproductive Harm
Shipping Dimensions (L x W x H) (In.)	160' x 102' x 68'
Software	BobCAD-CAM
Table Dimensions (In.)	60' x 140'
Travel Speed (FPM)	315 Inches Per Minute
Warranty	1 Year
Gross Weight	4000.0
Machine Weight (lbs.)	3520

Using the PT-105HD-V2 CNC Plasma Table is quite straightforward. First, make sure it's connected to a 220-volt single-phase power source. You can control the movement of the X, Y, and Z axes from the podium with the console screen and keypad. To start a project, design it on any basic PC using the included BobCAD-Cam Express software. Then, load the design to the table via a USB drive. You can also use the pre-loaded shape library on the console to resize and change shapes without a computer. When loading a 10-foot sheet, move the gantry out of the way to avoid machine damage. Be aware that the table is marked with Prop 65 warning about cancer and reproductive harm. As for maintenance, regularly check the wipers on the rails to ensure they keep the welding dust out. This will help the slide move smoothly without noisy friction. The table comes with a 1-year warranty, so if you have any issues during this time, contact the manufacturer.
