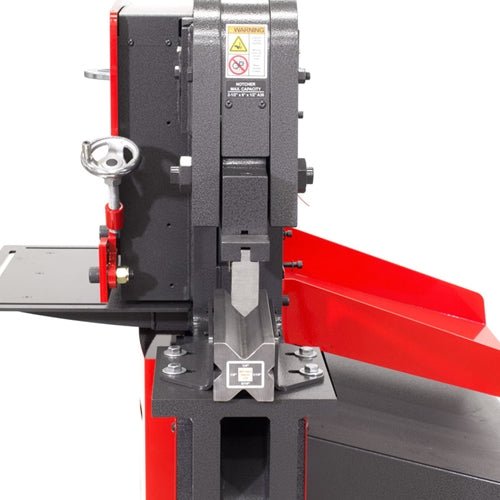

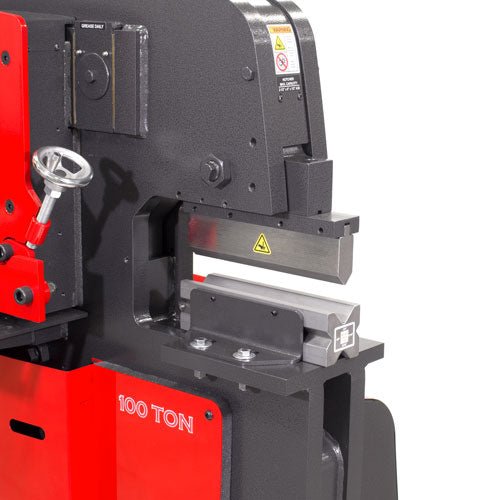

The Edwards Brake Tooling is suitable for various applications like brackets, frames, pans, and tanks. This length brake is designed to work with 75 - ton, 100 - ton, 110 Elite, and 110 - 65 Elite Dual Operator Ironworkers. It comes with a standard punch and a four - way die that can bend 1/16', 1/8', 3/16', and 1/4' material to a 90° angle. The bottom brake die is held by brackets that can be easily bolted to the mounting table. With the combination of this brake tooling and the ironworker's electric stroke control, you can achieve repeatable bending.
To use this brake tool, first, make sure your ironworker is one of the compatible models: 75 - ton, 100 - ton, 110 Elite, or 110 - 65 Elite Dual Operator Ironworker. Attach the bottom brake die to the mounting table using the brackets and bolts provided. Select the appropriate setting on the four - way die according to the thickness of your material (1/16', 1/8', 3/16', or 1/4'). Place your material in the brake and use the ironworker's electric stroke control to bend it to a 90° angle. For best results, ensure the material is properly aligned before starting the bending process. When it comes to maintenance, regularly check the brackets and bolts for tightness. Clean the tool after each use to prevent debris buildup. If you notice any signs of wear or damage, replace the parts as soon as possible.
