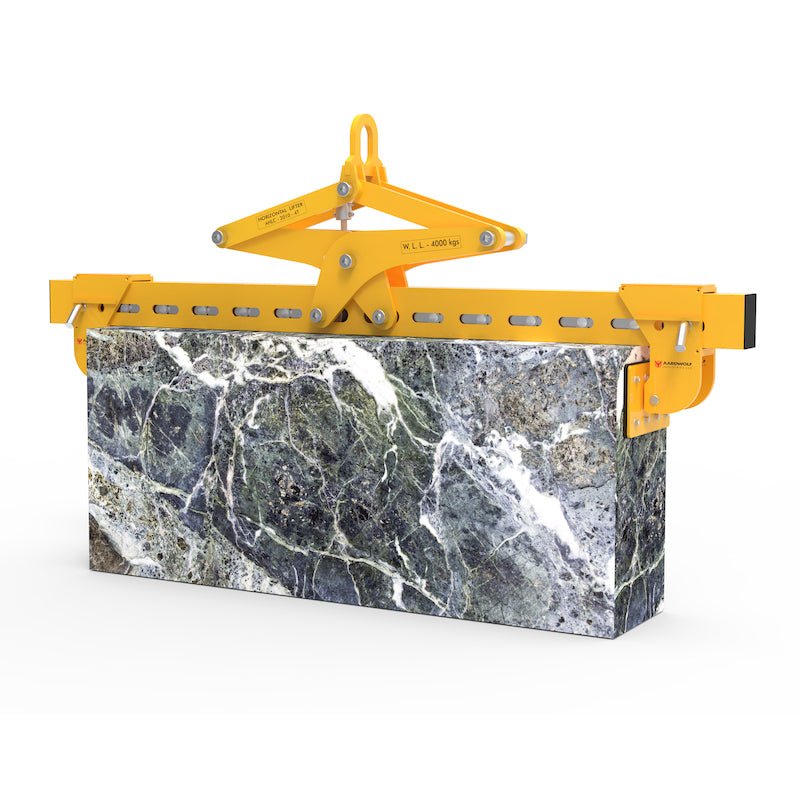

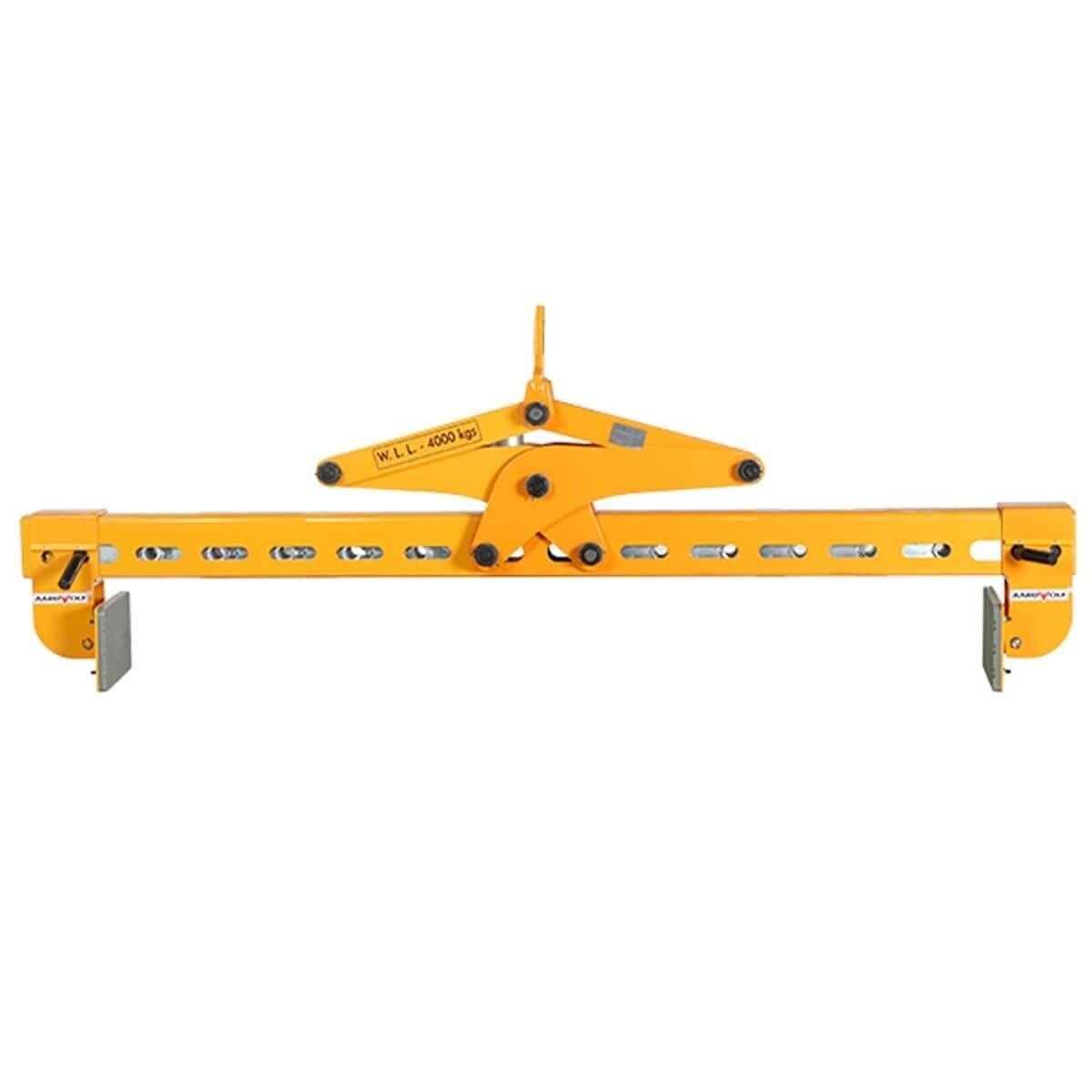

Aardwolf Horizontal Stone Lifting Clamp: The Ideal Solution for Moving Concrete and Stone
This horizontal stone lifting clamp is perfect for lifting concrete and natural stone horizontally. It features an automatic - release latch that disengages the lifter from the load once it's safely on the ground.
Key Features
- Adjustable opening width for flexible use
- A wide gripping range, suitable for various applications
- Durable, high - friction replaceable polyurethane gripping pads
- A lifting eye for easy attachment to a crane hook
- Automatic locking and unlocking of the load
Specifications
| Model | Grip Range | Lifting Capacity | Weight of Lifter |
| AHLC - 730 | 11' - 28' | 3307 | 247 |
| AHLC - 1050 | 11' - 41' | 3307 | 267 |
| AHLC - 1370 | 11' - 54' | 3307 | 273 |
| AHLC - 2010 | 11'' - 79'' | 3307 | 302 |
| AHLC - 2010 - 4 | 12'' - 79'' | 8818 | 503 |
Using the Aardwolf Horizontal Stone Lifting Clamp is easy. First, attach the lifting eye to the crane hook. Then, adjust the opening width according to the size of the concrete or stone you want to lift. Place the clamp on the load, and it will automatically lock. When the load is fully lowered to the ground, the latch will release the lifter from the load. Here are some important notes. Make sure the load doesn't exceed the specified lifting capacity. Check the gripping pads regularly for wear and replace them if they are too worn out. Also, keep the clamp clean and dry to prevent rust. Store it in a safe place when not in use. By following these tips, you can ensure the long - lasting performance of your lifting clamp.
