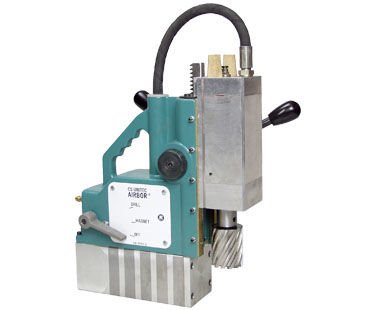

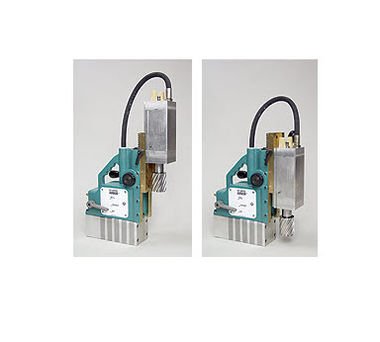

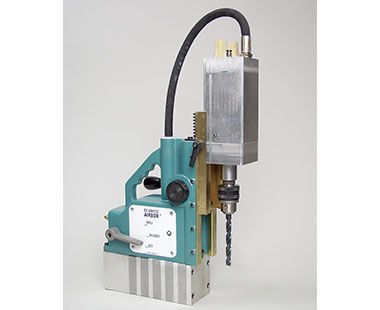

AIRBOR™ AB-4300 Portable Pneumatic Magnetic Drill w/ extension rack

Powerful Pneumatic Drill for Hazardous Zones - ATEX Approved

• Safer than electromagnetic drills in dangerous atmospheres and wet areas where electrical work needs special permits
• Fully air - powered for reliable operation
• Pressurized coolant system lubricates the cutter and minimizes the risk of sparks

Specs

Motor Power (Pneumatic)	1.6HP
Air Consumption @ 90 PSI	64 CFM (1/2' NPT Air Connection)
Hole Capacity	2 - 1/16' dia.
Stroke Length with Cutters	10 - 1/4'
Stroke Length with Twist Drill	7 - 1/2'
No Load Speed	400 RPM
Magnet Base Size	8 - 3/4' W x 3 - 1/2' L
Dimensions	13 - 1/2' H x 12 - 1/2' L x 4 - 3/4' W
Height - Closed	13 - 1/2'
Height - Open	22'
Magnetic Force (1' Plate)	1600 lbs.
Arbor Bore	3/4' Weldon Shank
Weight	43 lbs. (20kg)
Automatic Lubrication	Included

Using the AIRBOR™ AB - 4300 Portable Pneumatic Magnetic Drill is easy. First, make sure you're in a suitable environment where the drill can be used safely. Connect the air supply using the 1/2' NPT air connection. Place the drill on the surface and activate the magnet to secure it. Select the right cutter or twist drill according to your needs. Start the drill and let it do its job. The automatic lubrication system will keep the cutter in good condition. When you're done, turn off the drill and disconnect the air supply. Keep the drill clean and dry. Check the air connections regularly for any signs of wear or damage. If you notice any problems, get it checked by a professional. Also, always follow the safety regulations when using the drill in hazardous environments.
