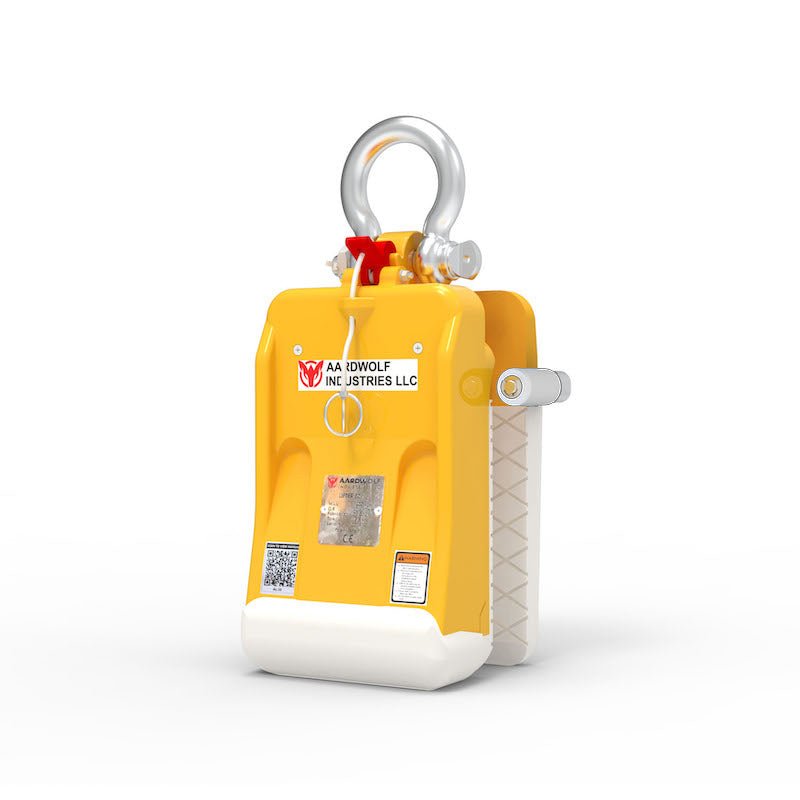

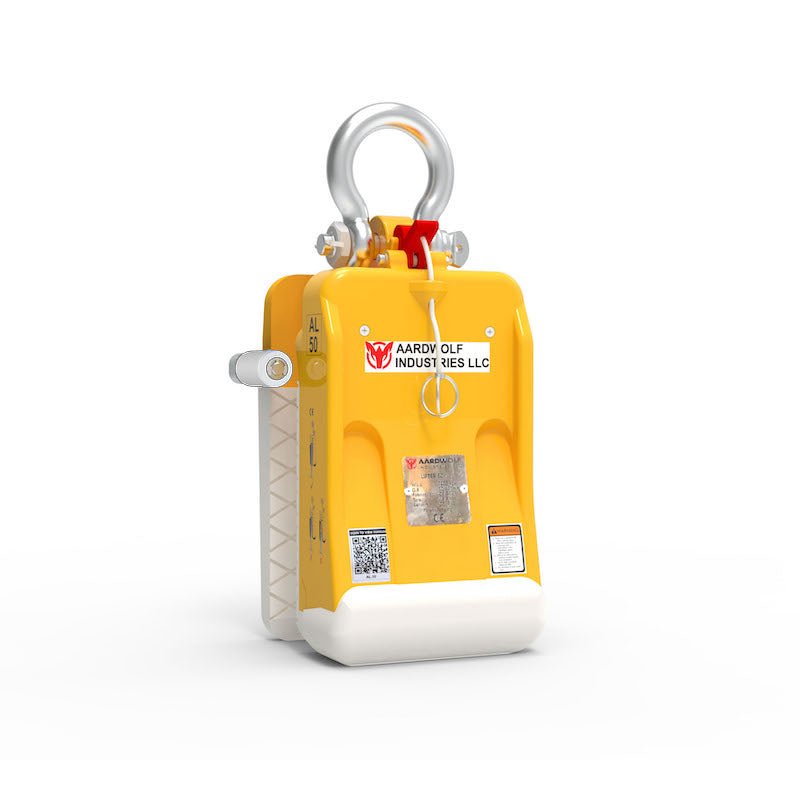

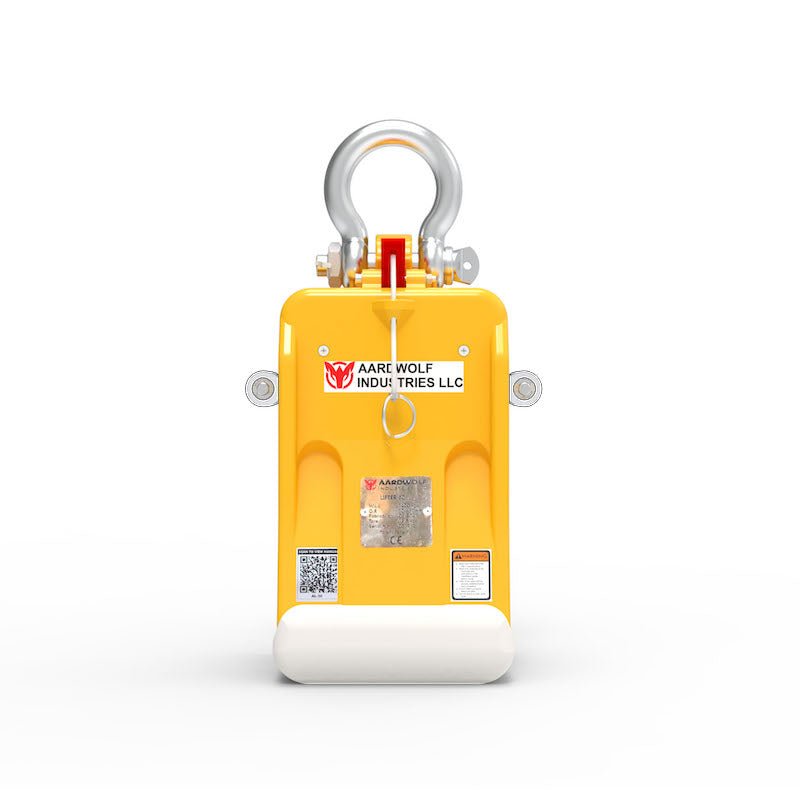

Aardwolf Slab Lifter 50 with Rollers

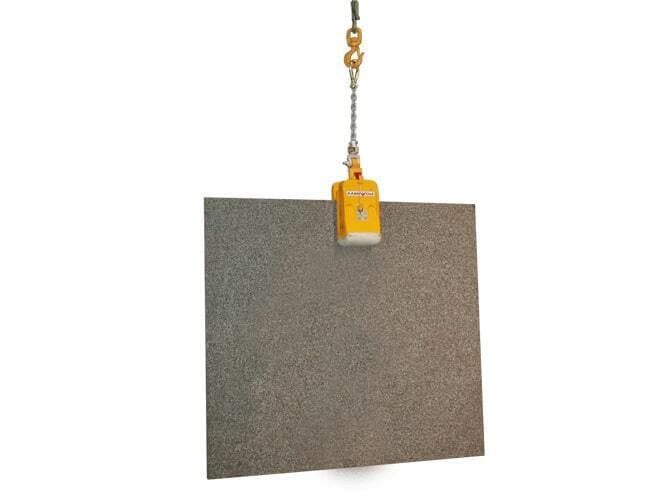

The Aardwolf Slab Lifter AL50 is a game - changer in slab handling. It has a spring - loaded latch that automatically releases the lifter from the slab once it's fully lowered to the ground. This allows a single person to handle the lifting and lowering process effortlessly. ### General The patented Aardwolf Slab Lifter is an essential accessory for lifting and moving slab - form loads. With its unique spring - loaded latch, it simplifies slab handling operations. ### Features - **Compact Size**: The Aardwolf Slab Lifter 50 has a compact design, enabling it to lift closely packed stone slabs from racks and containers. It can handle lower height slabs placed beside taller ones, a task that scissor clamps struggle with. - **Versatile Use**: Ideal for construction work. Since the clamping mechanism is at the front of the slab, it allows panels to be placed right up against walls. - **Enhanced Safety**: It only needs a small movement of the slab to engage and grip, well below the over - balance angle, thus eliminating risks to the operator. - **Secure Grip**: The Aardwolf clamps firmly hold marble and granite slabs. The Aardwolf Slab Lifter 50 has a force - multiplying factor of about 2.5 to 1. ### Specifications | Model | Grip Range | Working Load Limit | Net Weight | Gross Weight | Packing Dimensions | | ---- | ---- | ---- | ---- | ---- | ---- | | Lifter 30 Wide | 0.2'' - 1'' | 2646 | 45 | 47 | 17.3''x6.3x14.2'' | | Lifter 50 | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' | | Lifter 50 - B | 0.4'' - 2'' | 2646 | 53 | 55 | 22.8''x7.3''x12.2'' | | Lifter 60 | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 75 | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 50 (Auto) | 0.4'' - 2'' | 2646 | 42 | 44 | 15''x8.3''x9'' | | Lifter 60 (Auto) | 0.6'' - 2'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' | | Lifter 75(Auto) | 1'' - 3'' | 2646 | 55 | 57 | 16.5''x9''x9.8'' |

### How to Use 1. First, make sure the slab you want to lift is within the grip range of your Aardwolf Slab Lifter model. Check the specifications table for details. 2. Position the lifter over the slab. The clamping mechanism should be at the front of the slab. 3. Engage the lifter with a small movement of the slab. The lifter will grip the slab firmly. 4. Lift the slab using an appropriate lifting device. When you lower the slab to the ground, the spring - loaded latch will automatically release the lifter. ### Precautions - Always check the working load limit before using the lifter. Overloading can cause damage and is dangerous. - Ensure that the slab is stable and balanced before engaging the lifter. This helps prevent accidents. - Keep your hands and body clear of the clamping area during operation. ### Maintenance - Regularly inspect the lifter for any signs of wear or damage, such as cracks in the clamps or malfunction of the spring - loaded latch. - Clean the lifter after each use to remove dirt and debris. This helps maintain its performance. - Lubricate moving parts periodically to ensure smooth operation.
