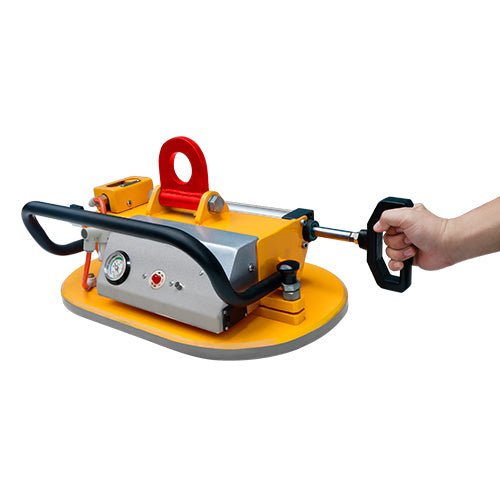

Abaco Dual Pump Vacuum Lifter

Safely lift and move non-porous materials with our Abaco Dual Pump Vacuum Lifter.

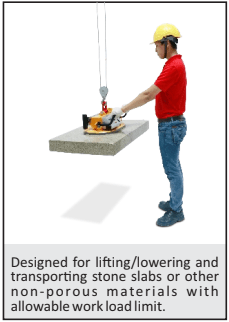

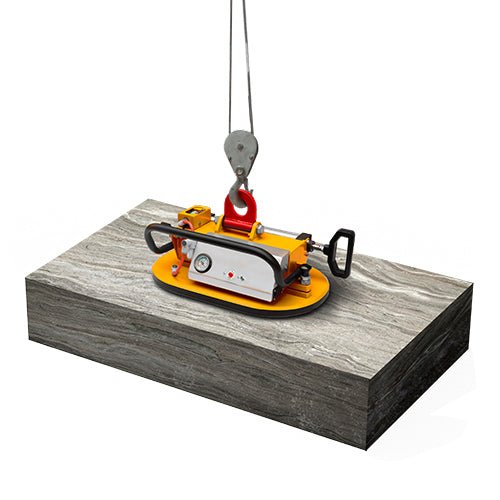

It's perfect for lifting, lowering, and transporting stone slabs or other non-porous materials within the allowable workload limit. Usually paired with a hoist, it can lift stone slabs onto a worktable or move them in a warehouse or workshop.

Key Features of the Dual Pump Vacuum Lifter

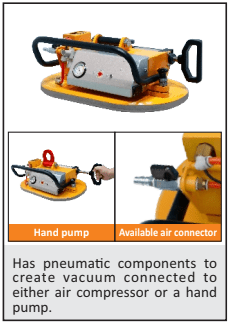

• Create vacuum force flexibly - use the compressed air in the warehouse or the hand pump to lift non-porous materials.
• Maintain a steady vacuum force during operation.
• Soft-rubber suction cups improve adhesion and prevent damage to the stone slab.

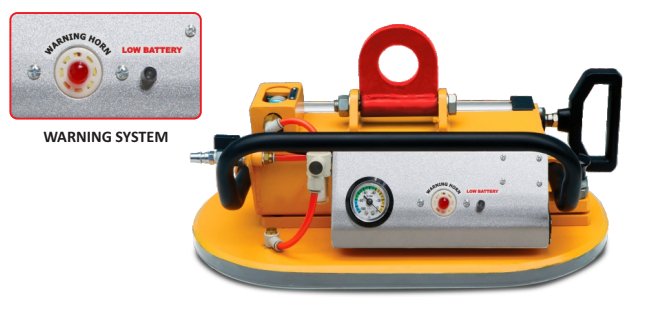

• A double audio-visual alarm warns of low pressure while in use.
• Simple and compact design for easy transport and storage.

Model	Length In (mm)	Width In (mm)	Height In (mm)	Net Weight lbs (kg)	Work Load Limit lbs (kg)
ADPV250	21-3/8 (543)	12-1/2 (318)	7-3/8 (187)	44 (20)	550 (250)

Using the Abaco Dual Pump Vacuum Lifter is easy. First, decide whether to use the compressed air in the warehouse or the hand pump to create the vacuum force. Then, place the lifter on the non-porous material, like a stone slab, and let the soft-rubber suction cups do their job. Make sure to keep an eye on the double audio-visual alarm during operation. If it goes off, it means the pressure is low. When moving the material, ensure it's within the work load limit. For storage, its simple and compact design allows for easy placement. As for maintenance, check the suction cups regularly for any signs of wear and tear, and keep the pumps clean.
