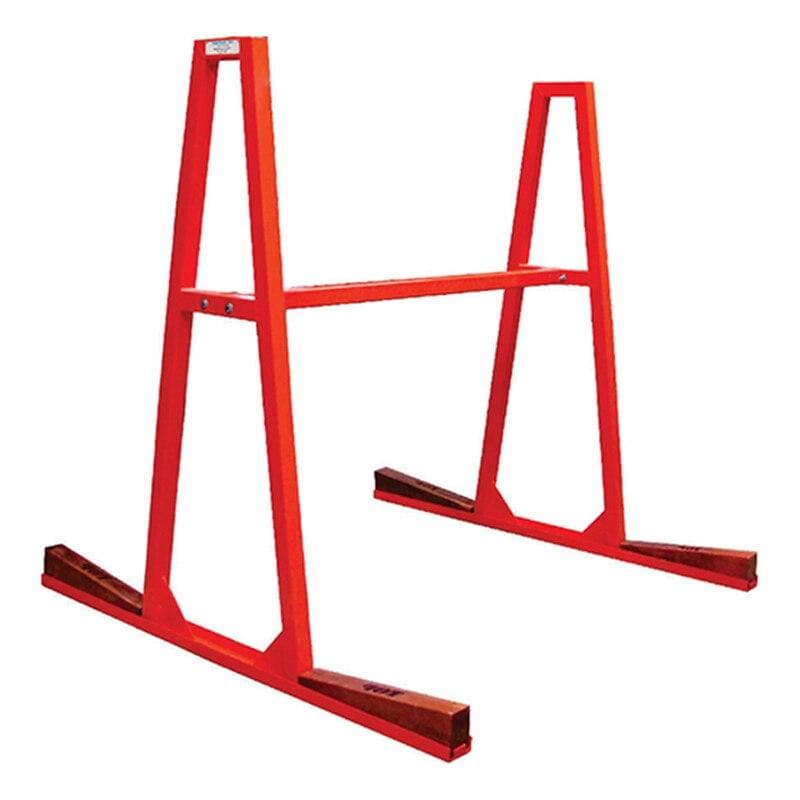

Granite A - Frame Specially Designed for Trucks
The Abaco Truck A - Frame combines two standard A - frames with a cross - bar, extending the total length to five feet. It can store up to 16,500 pounds (7500kg) per side. Angled timber blocks are included to safeguard materials, making it perfect for moving slabs between factories.
- SQUARE STEEL TUBING: 2 x 2 x 1/8 inches (50 x 50 x 3mm)
- STRENGTHENING PLATE : 5 7/8 x 5 7/8 x 1/4 inches (150 x 150 x 6mm)
- INCLUDES TIMBER BLOCKS TO PROTECT MATERIAL AND IMPROVE STABILITY: 18 x 1/8 x 4 3/8 inches(460 x 80 x 110mm)
Model Number | Length inches (mm) | Width Inches (mm) | Height Inches (mm) | Net Weight Pounds (kg) | W.L.L Pounds (kg) |
TAF060 | 60 (1524) | 60 (1524) | 60 (1524) | 132 (60) | 16,500 (7500) Per Side 33,000 (11,000) Per Pair |
Using the Abaco Truck A - Frame is easy. First, make sure it's properly attached to your truck. Then, place the slabs on the frame, using the angled timber blocks to protect the materials. When moving the slabs, drive carefully to avoid any sudden movements. For maintenance, regularly check the square steel tubing and strengthening plates for any signs of damage or wear. Keep the frame clean and dry to prevent rust. Don't exceed the weight limit, as it's set for your safety and the frame's longevity.
