Description

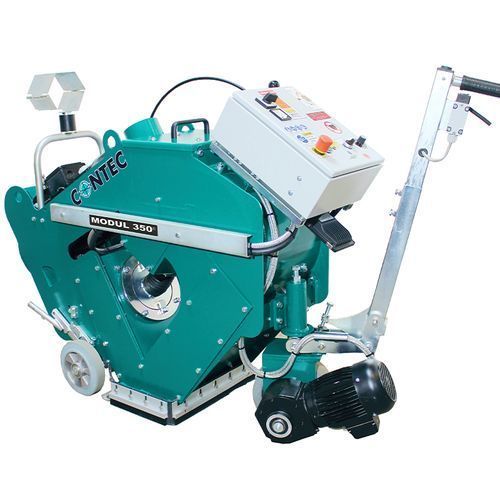

The MODUL 350 is a top - notch mobile shot blaster, a globally proven modular concept from CONTEC. It comes with a 14 - inch shot blaster, powered by a 23 - horsepower motor running on 480 volts and 3 - phase electricity. You have the flexibility to choose single or double blast widths. This machine offers dust - free blast cleaning on the go. Similar to its smaller sibling, the Modul 200, it's the most versatile and effective surface preparation system in its category. By adding a MODUL 350 EU (Extension Unit), you can double the blast width of the basic model, significantly boosting production at a low cost. With its unique design and high - powered blast motor, it performs superbly on very hard concrete, coatings, steel decks, bridges, and tanks. Features include compact dimensions for easy maneuverability, high performance on both steel and concrete, an exclusive 'Travel Mode' to prevent dust skirt damage during transportation, easy transport to your job site, long - lasting consumables that cut operation and consumable costs, and simplified maintenance that users can handle. It has a 14 - inch working width, perfect for large jobs and high - volume production. The Travel Mode allows you to move around the job site with ease. It's extremely high - quality and made in Germany. Technical specs: Maximum Working Width is 14 inches (350 mm), Motor is 17.3 kW (23 hp) at 480 V, 60Hz, 3 - PHASE, 26 Amps, Dimensions are 42 X 69 X 22 inches, and Weight is 882 lbs.
Using the MODUL 350 is easy. First, make sure it's properly connected to a 480 - volt, 3 - phase power source. You can start by choosing the blast width according to your job needs. If it's a large - scale job, consider adding the MODUL 350 EU to double the blast width. When moving it around the job site, use the 'Travel Mode' to protect the dust skirt. Before starting work, check the machine for any visible damage. When operating, keep an eye on the motor performance. If you notice any unusual noises or vibrations, stop the machine immediately. For maintenance, it's designed to be user - friendly. Regularly check the consumables and replace them when they start to wear out. This will not only ensure the machine's performance but also extend its service life. Store the machine in a dry and clean place when not in use.
